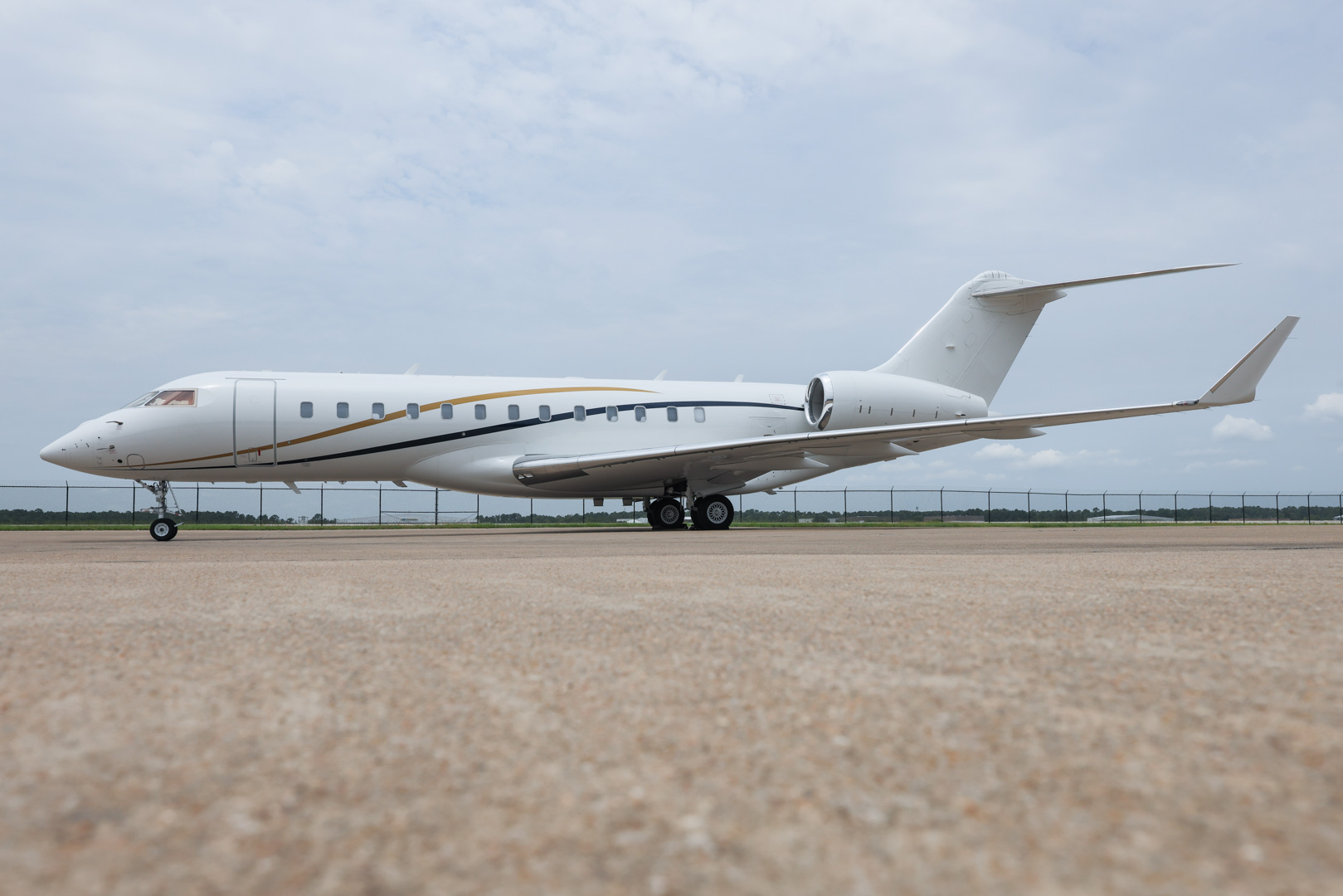

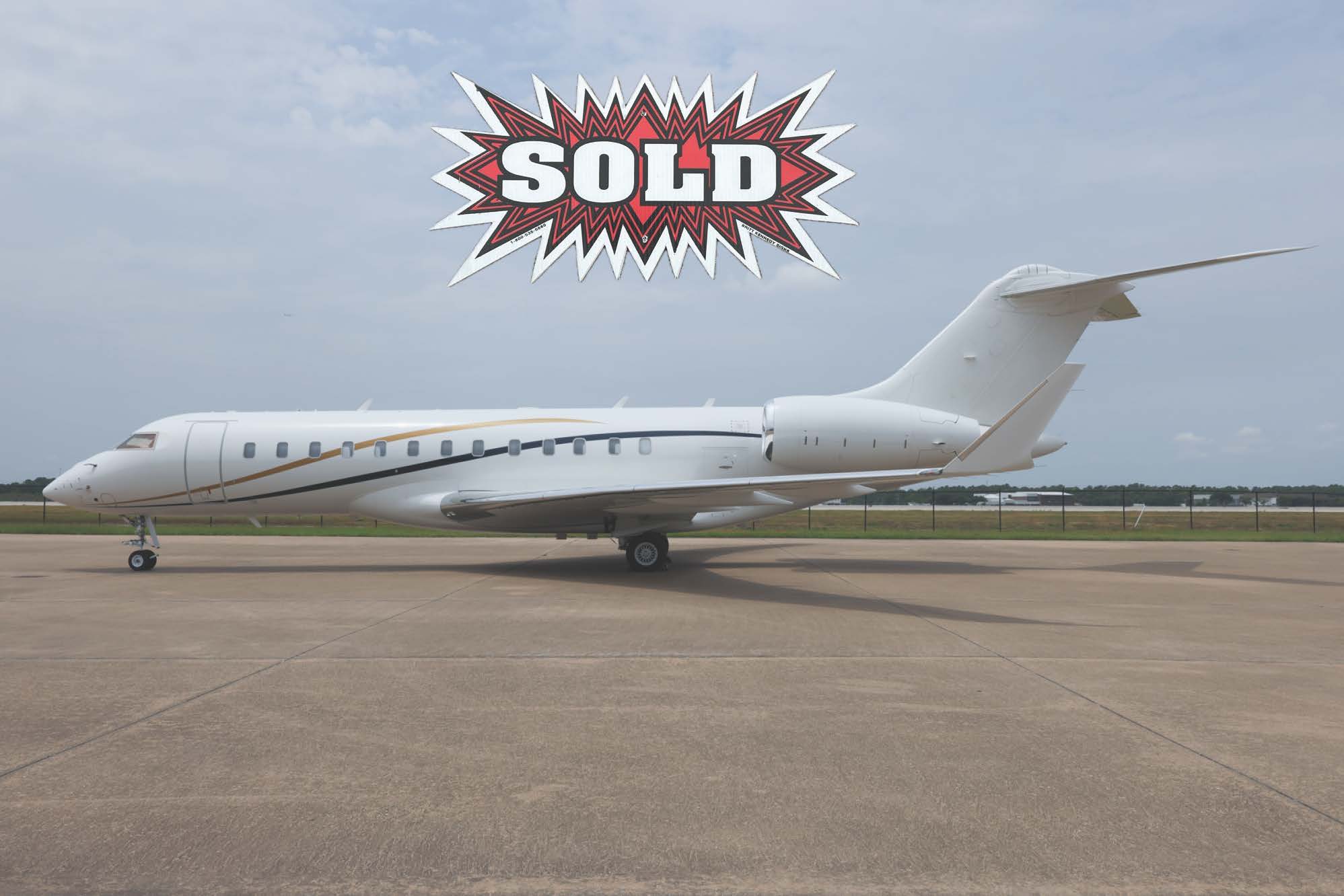

Serial Number: 9675
Registration Number: N529DB
Contact:
Jon Taylor
713-898-1617
jon.taylor@jbajets.com
AIRFRAME:
Total time since new: 1,619.8 hours
Total cycles since new: 669 cycles
Manufacture date: 2015
Home base: Houston
Maintenance tracking: VERYON
Current regulation: Part 135

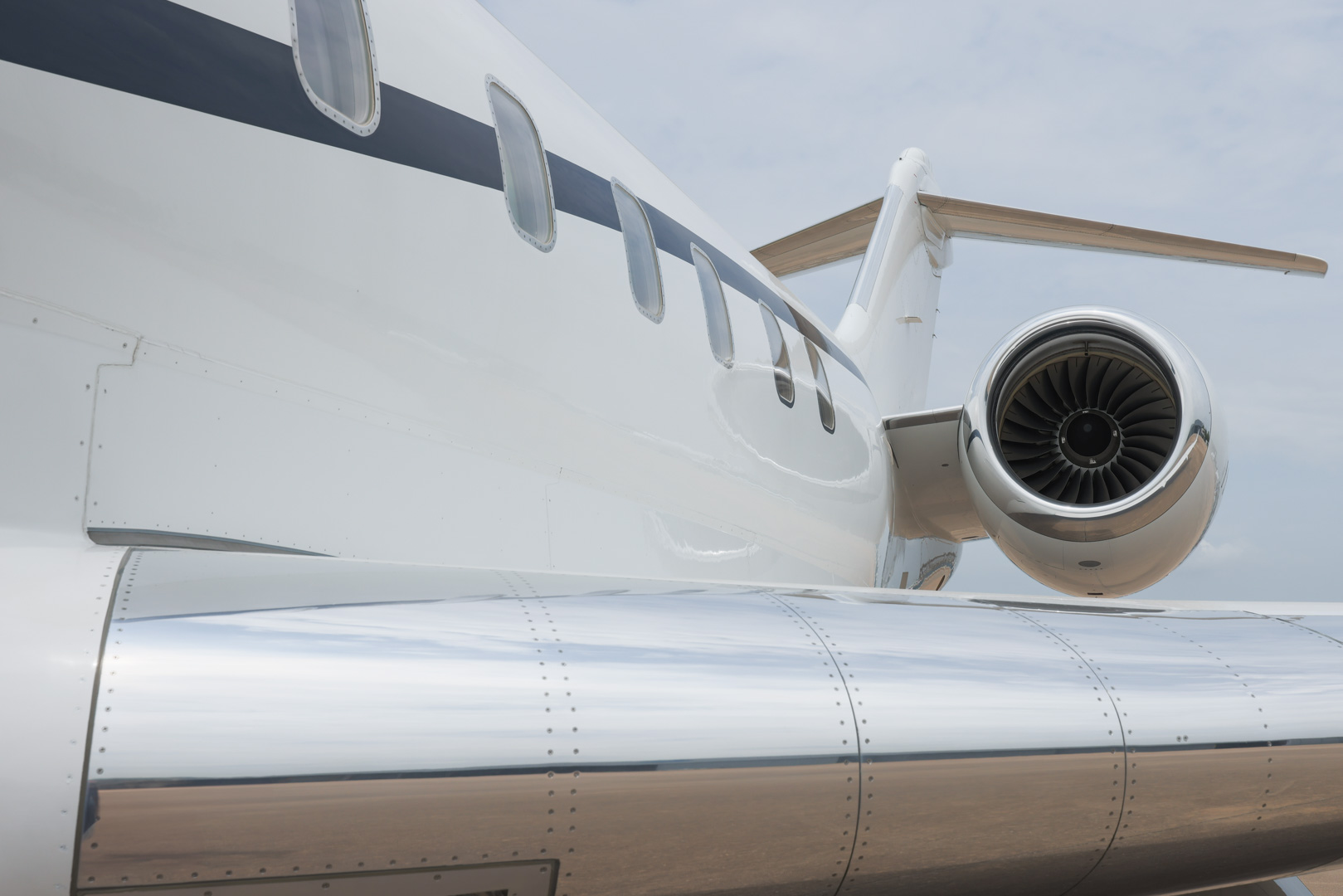

ENGINES:
Engines: Rolls Royce BR710A2-20
Serial number(s): 22500/22501
Total time since new: 1,619.8 hours/1,619.8 hours
Total cycles since new: 679 cycles/679 cycles
Program coverage: RRCC Eligible
APU:
Power unit: Honeywell RE220(GX)
Serial number: P-801
Total time since new: 1,276.3 hours

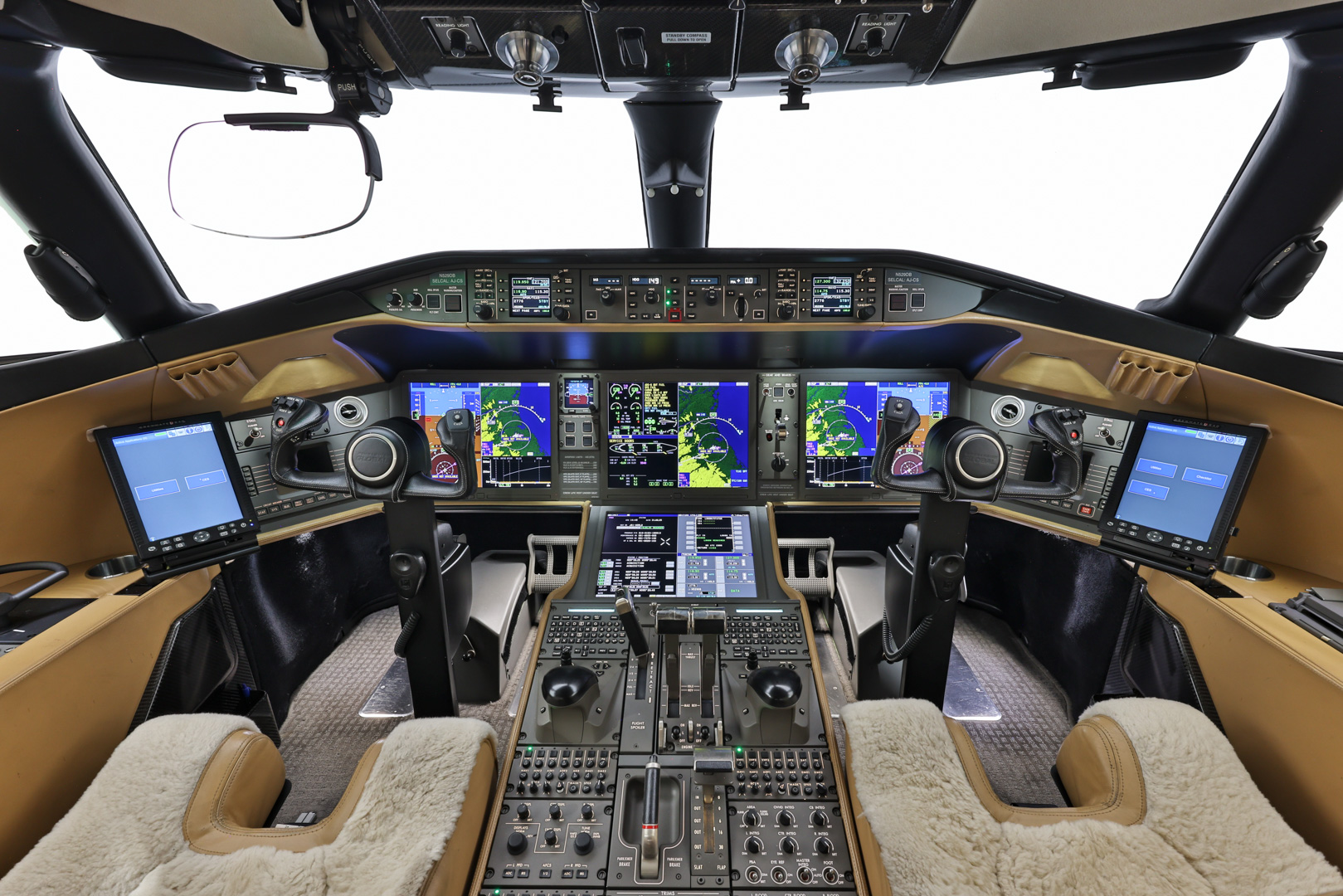

AVIONICS SUITE – Upgraded to Vision 5.8 with all SB options
including ADS-B in/out
EFIS -Quad Adaptive Flight Displays
FMS – Triple Integrated
GPS – Dual GPS-4000S s/WAAS
NAV – Dual NAV-4000
ELT – Single ARTEX B406-4
DME – Dual Collins DME-4000
EVS – Single Bombardier
HGS – Single Bombardier
SVS – Single SVM-6110H
ADF – Dual Collins NAV-4000
FLT DIR – Dual Integrated AFCS
A/P – Dual Integrated AFCS
VHF COM – Triple Collins VHF-4000
HF COM – Dual Collins HF-9031A
SATCOM – Single AIRINC 781 SATCOM System (SAT 2200)
RADAR – Single Collins RTA-4118
RADIO ALT – Dual Collins ALT-4000
TRANSPONDER – Dual TDR-94D
SELCAL – Single RIU-4110
EGWPS – Single TPM-6000
LSS – Single WX-1000E
TCAS II CHG7.1 – Single TSS-4100 w/Lower Directional Antenna
CVR – Single FA2100 SSCVR
FDR – Single FA2100 SSFDR
OTHER EQUIPMENT
Logo lights, common keyed locks, aft equipment bay storage box, Airstair extension
and tow bar, electric floor tracking assist, external camera system, EVAC sanitation

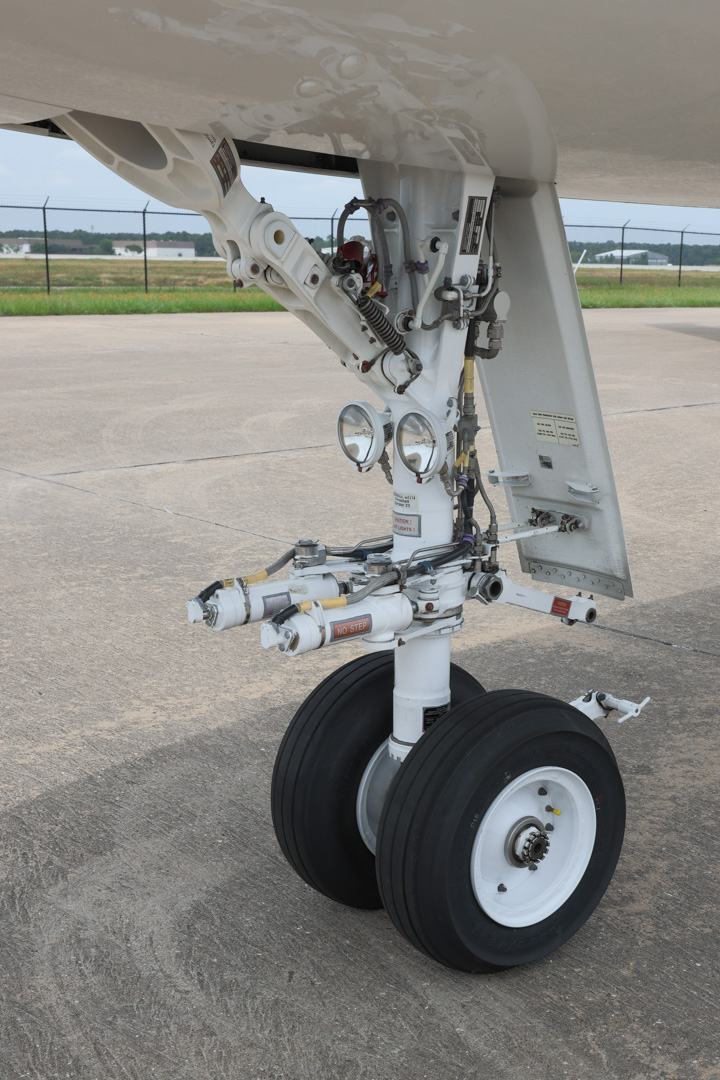

system pulse landing light system, ext panel lighting package, 115/VAC outlets
Seating capacity – 16 + 2 crew

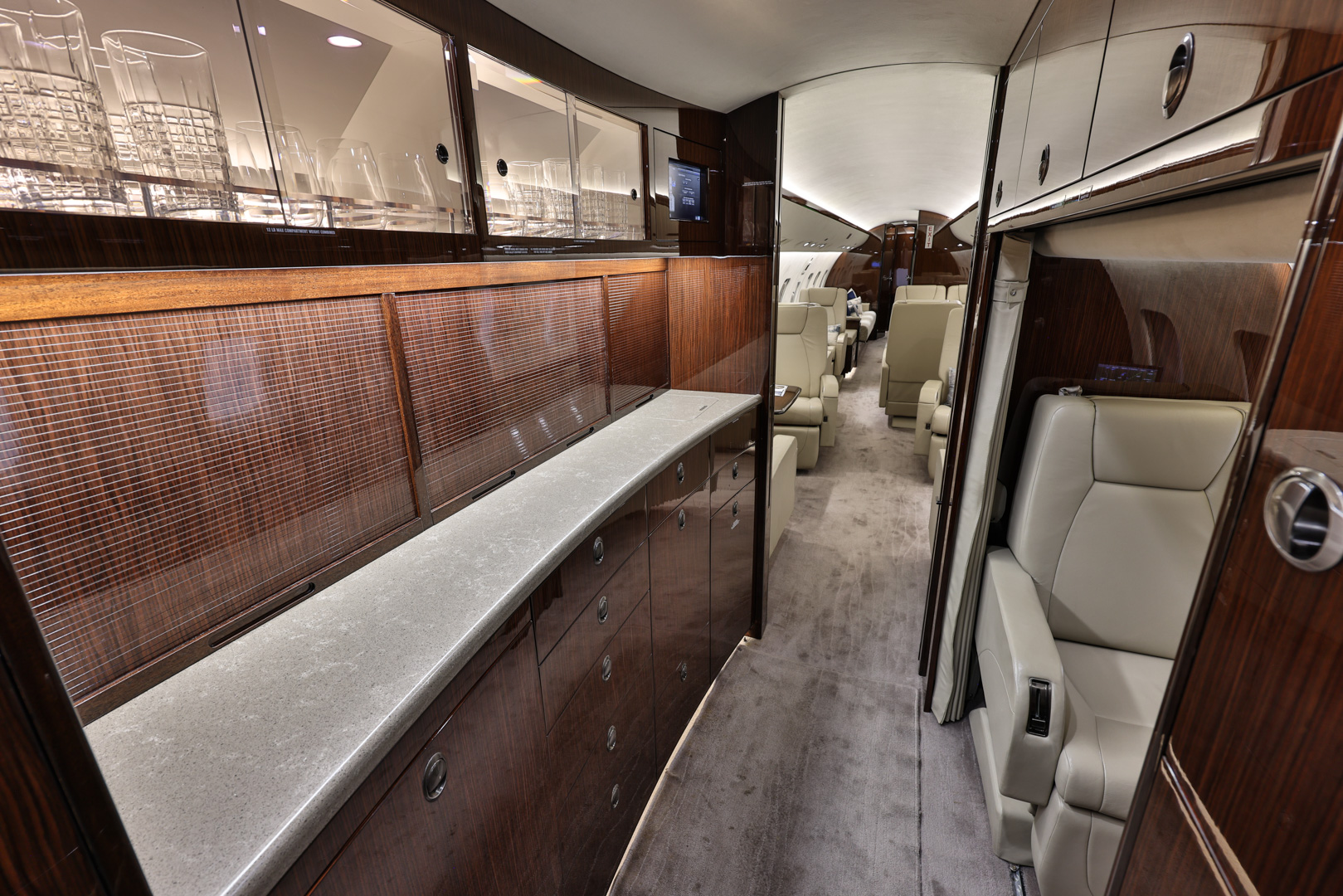

Galley & galley annex – Forward

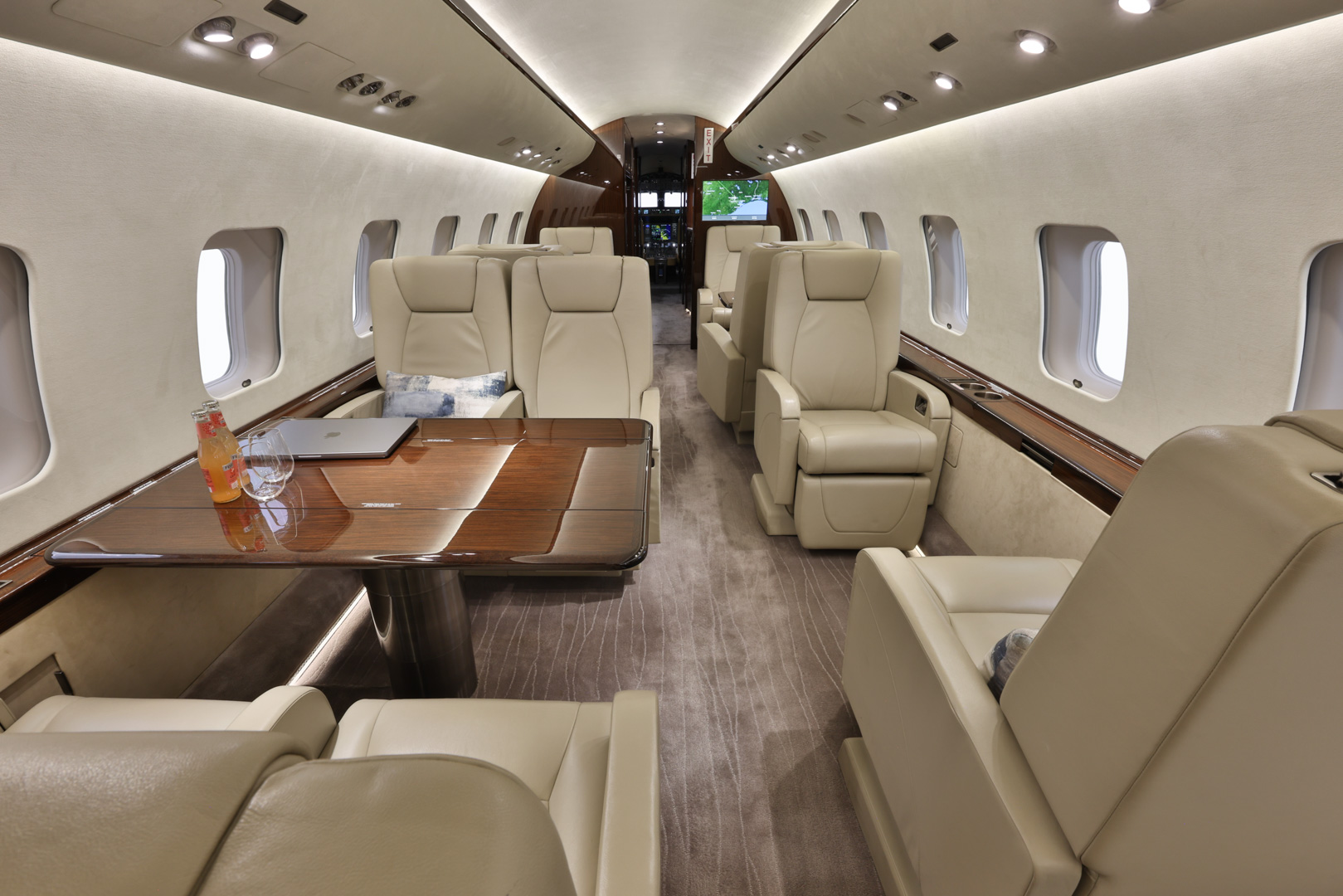

FWD cabin configuration – 4-Place club seating with pull-out tables

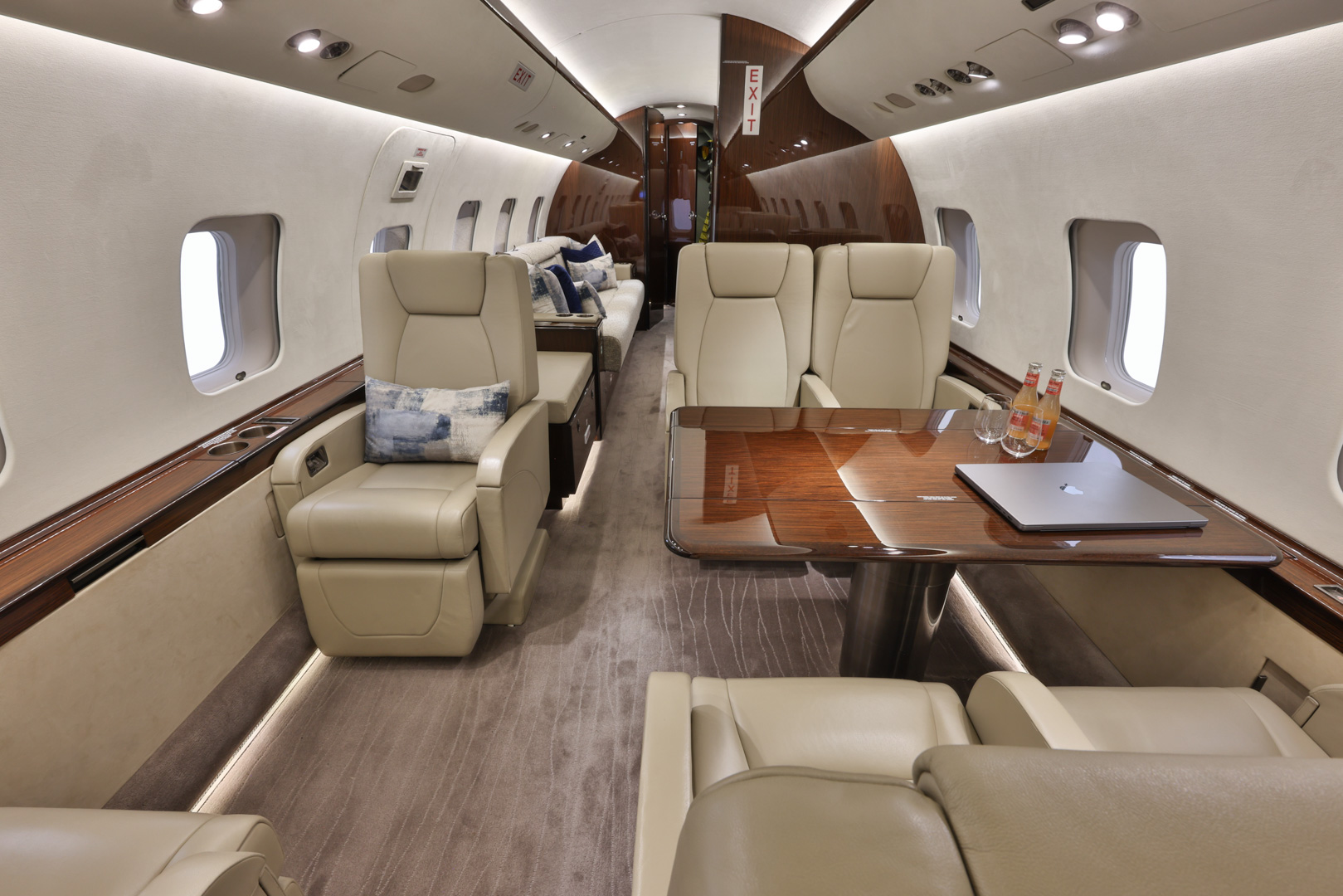

MID cabin configuration – 4-Place conference grouping opposite 2 seats w/table

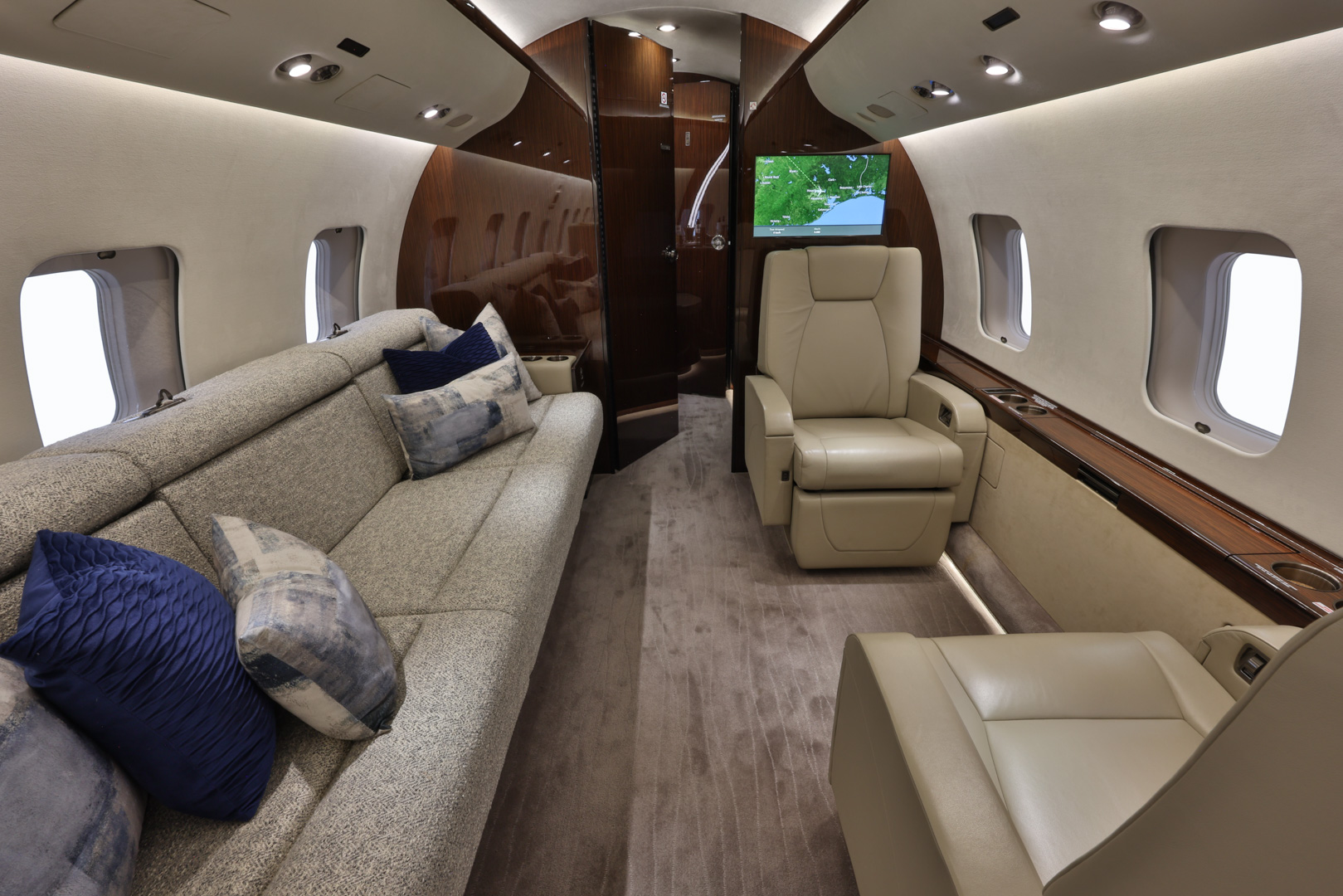

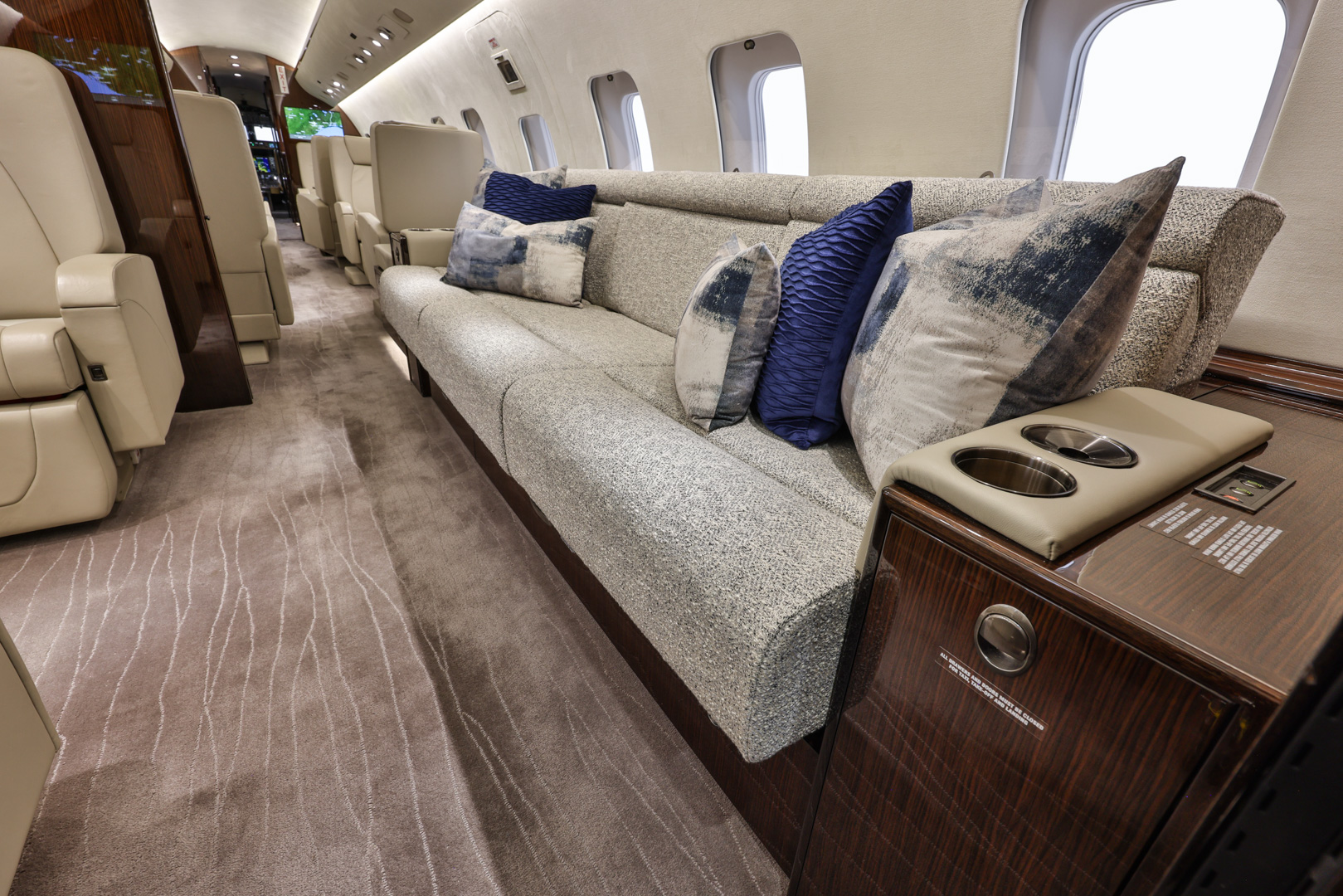

AFT cabin configuration – 3-Place divan opposite 2-place club seats

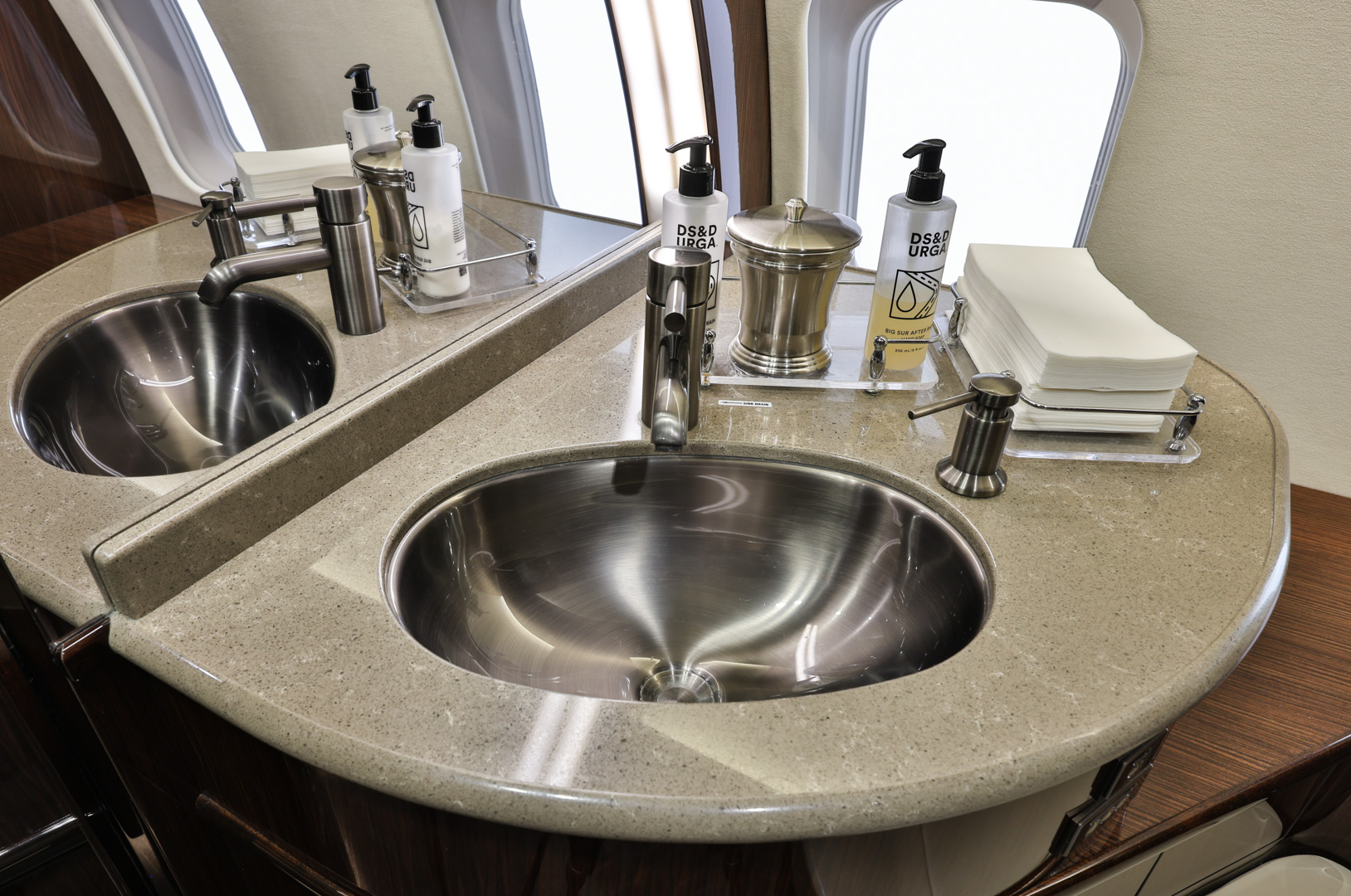

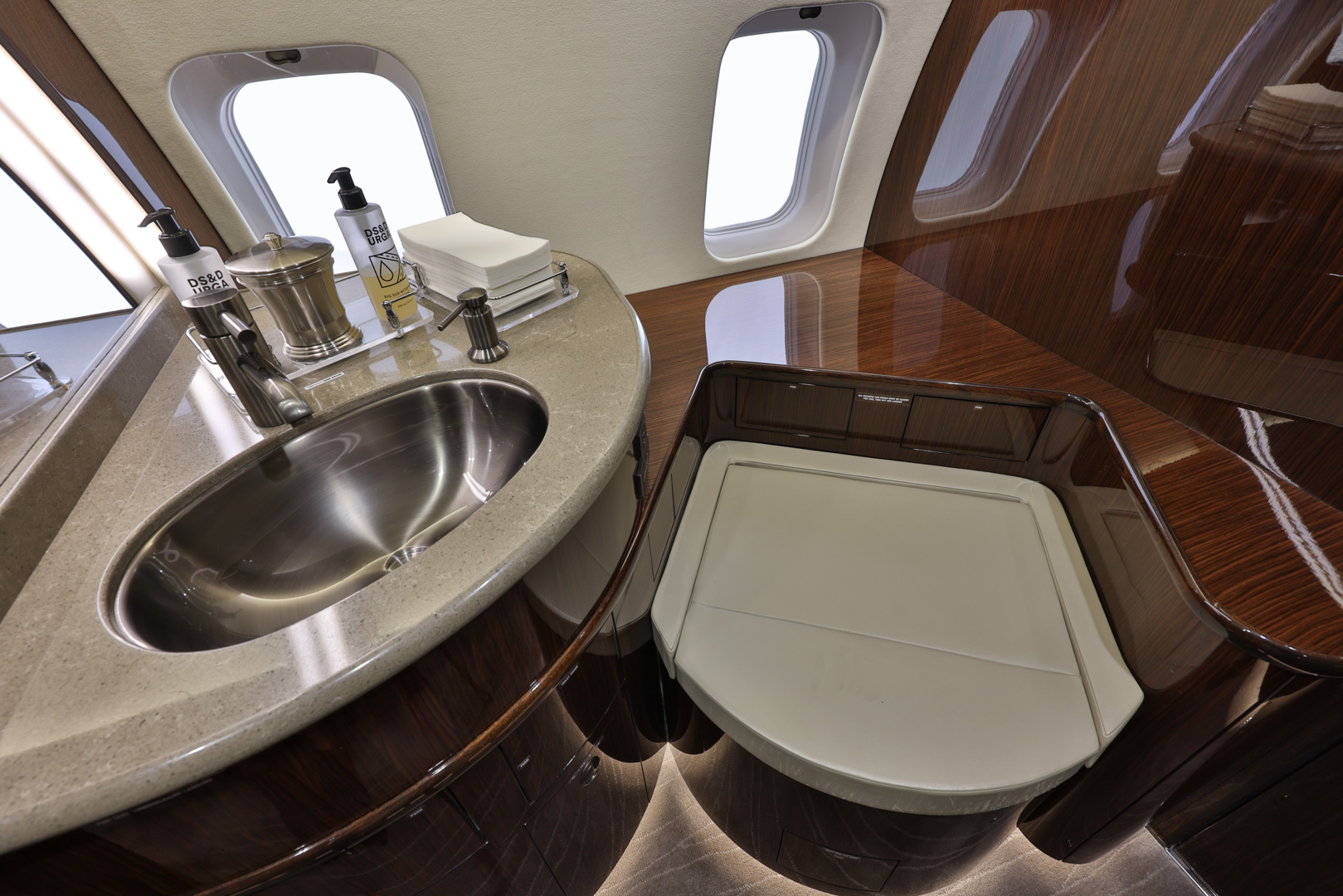

Lavatory location(s) – FWD crew lav & AFT fully enclosed passenger lav
Crew rest – Placarded as passenger seat with multimedia services
Jumpseat – Flight observer seat with audio panel

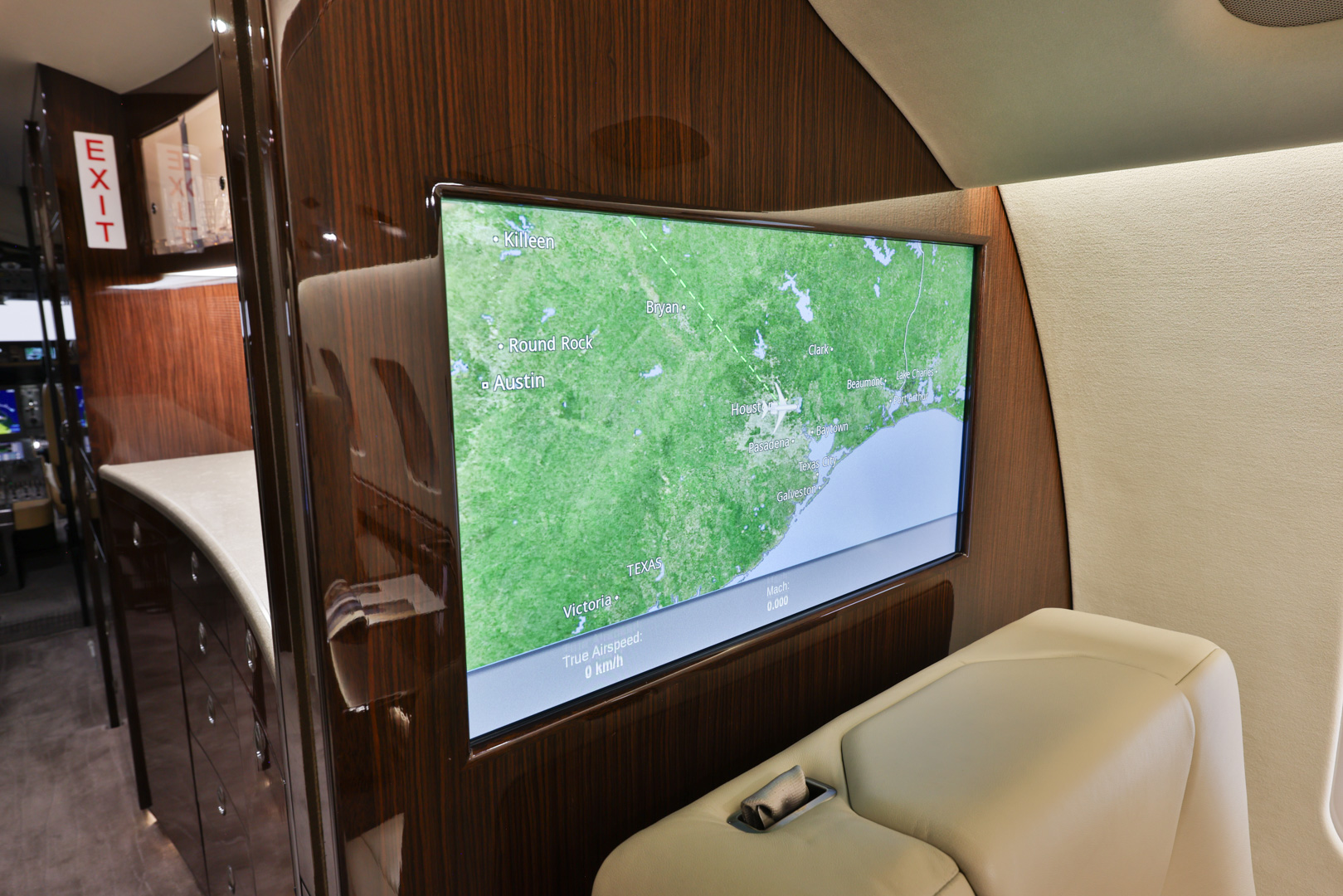

Other notable features – Electrical lumbar on seats, electrical shades, LED cabin lighting, 11 monitor receptacles, HDMI port at VIP seat and additional universal outlets

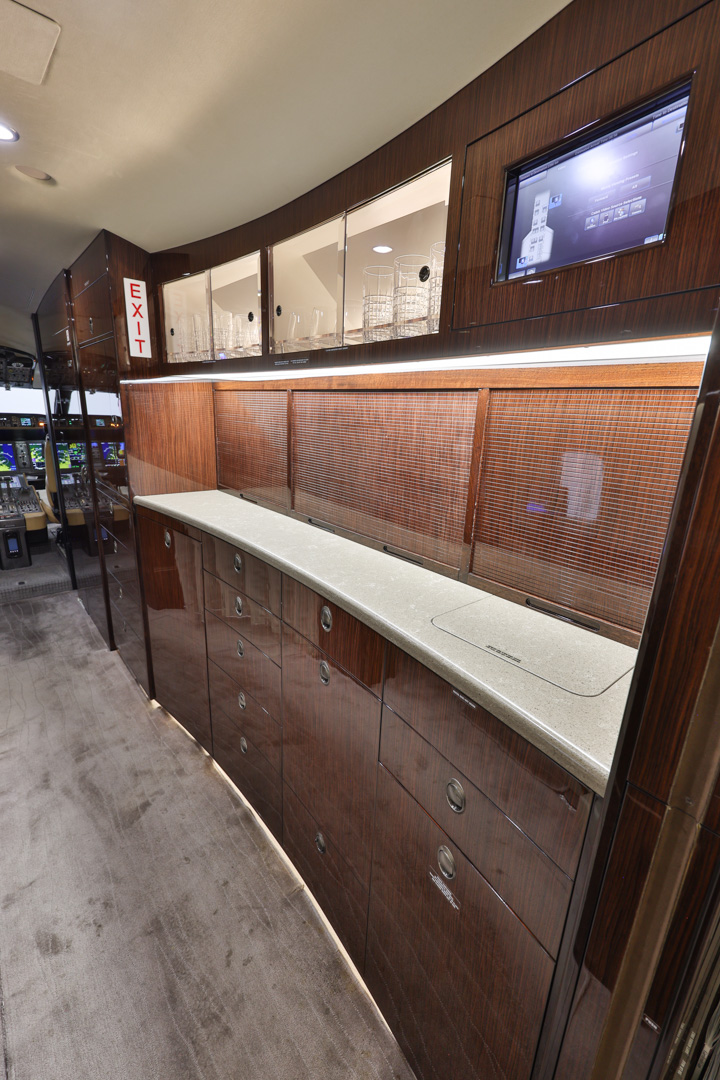

Galley equipment – Dual coffee makers, chiller, microwave oven, high temperature oven, knife block installation, floor mat heaters, touch screen control panel
Carpet – Taupe
Woodwork – High gloss cherry
Soft goods – Beige leather
Plating – Brushed nickel

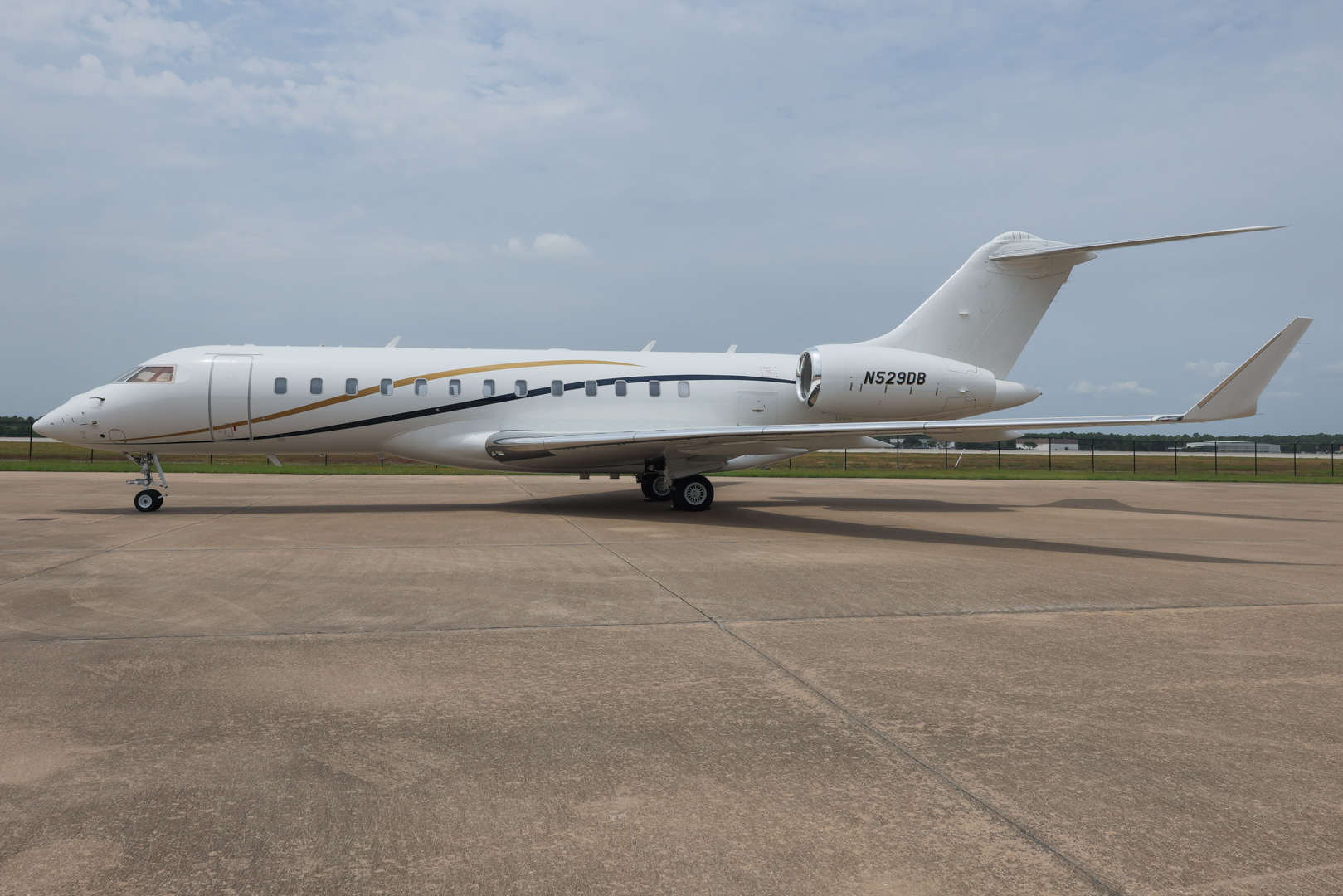

Base: Matterhorn White
Stripes: Gold and Blue
