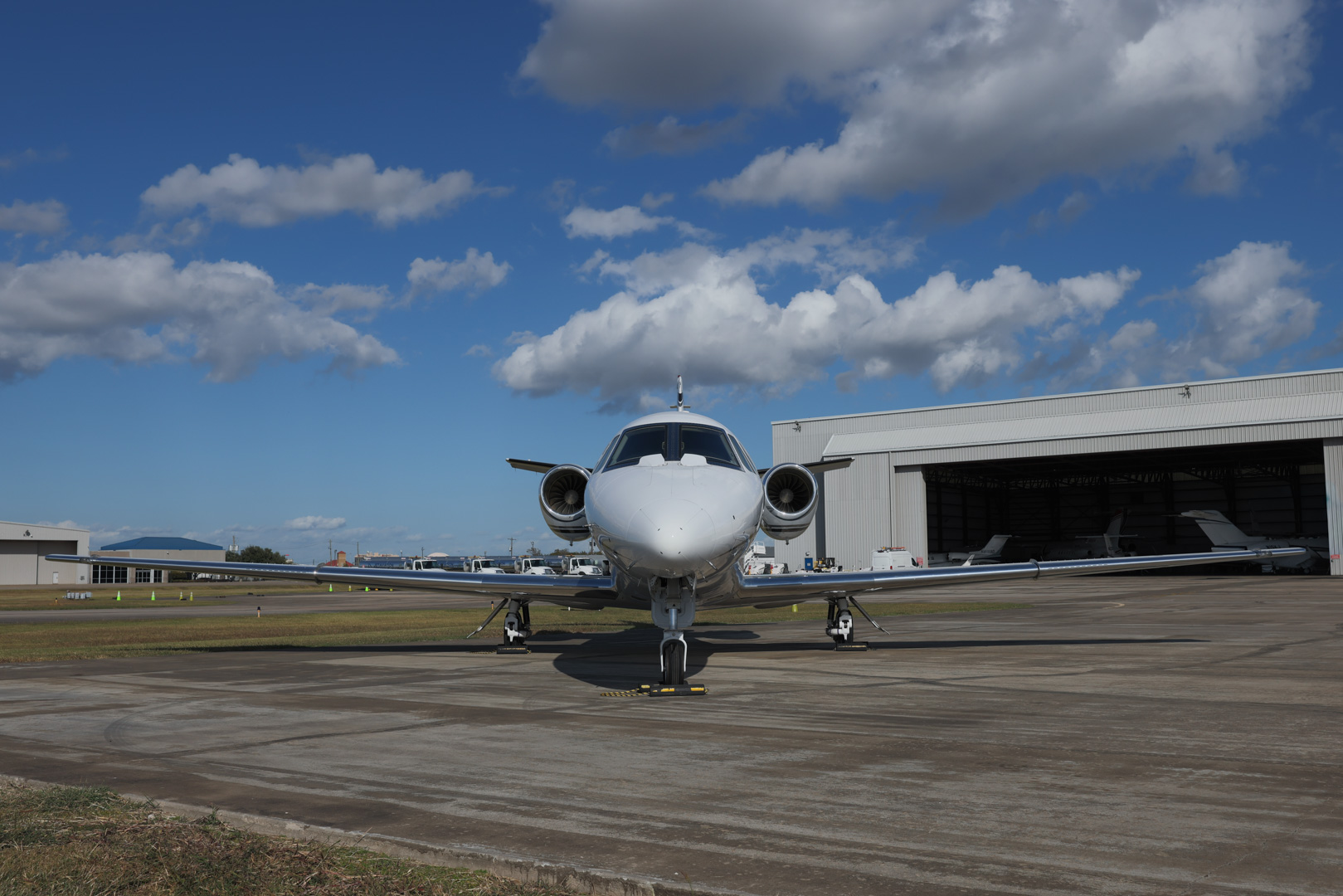

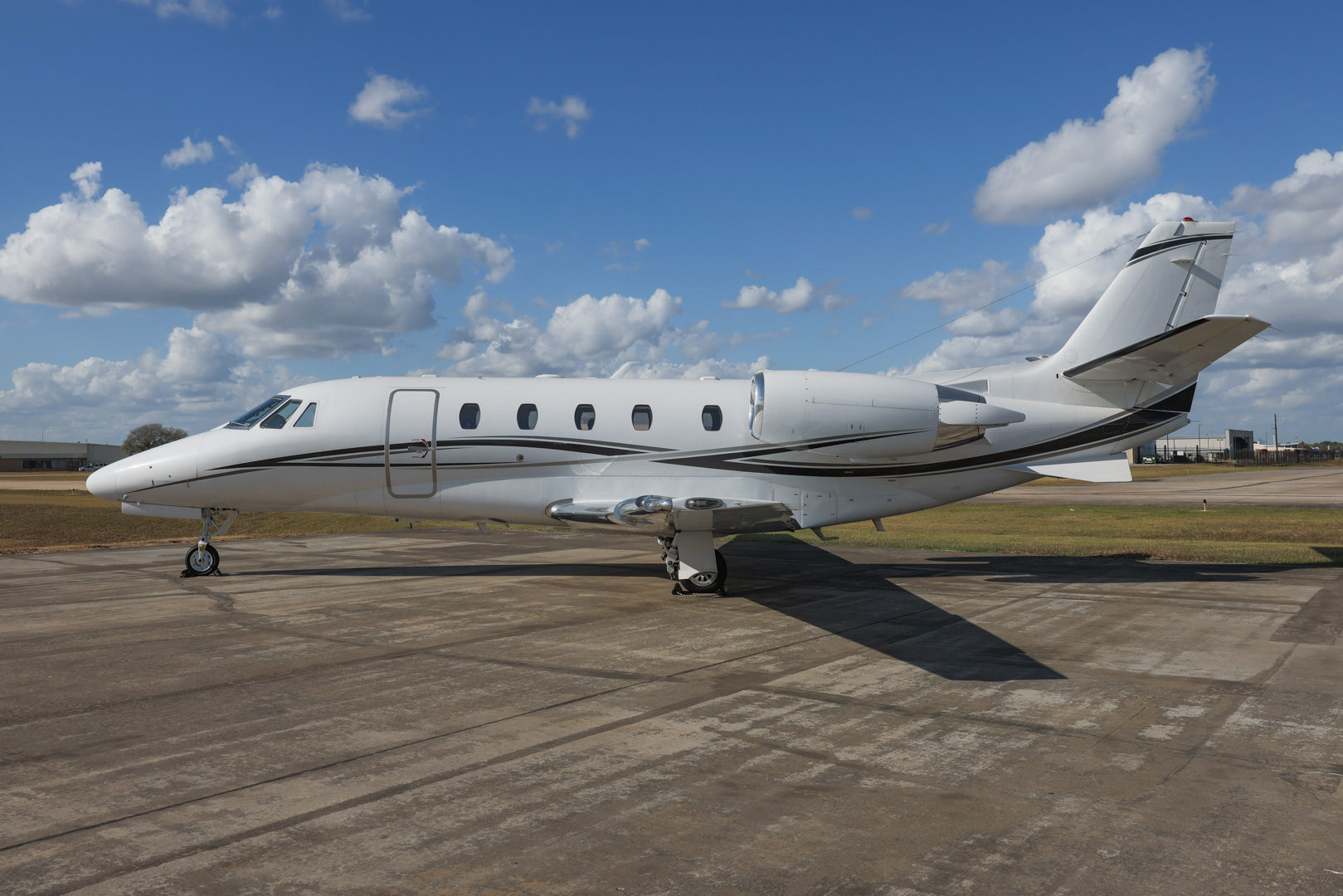

2013 Citation XLS+
Serial Number: 6131
Registration Number: N242JT
Contact:
Toby Smith
918-834-9100
toby.smith@jbajets.com
AIRFRAME:
Total time since new: 3,709.8 hours
Total cycles since new: 2,825 cycles
Manufacture date: 2013
Home base: KHOU
Maintenance tracking: Cescom
Current regulation: Part 91

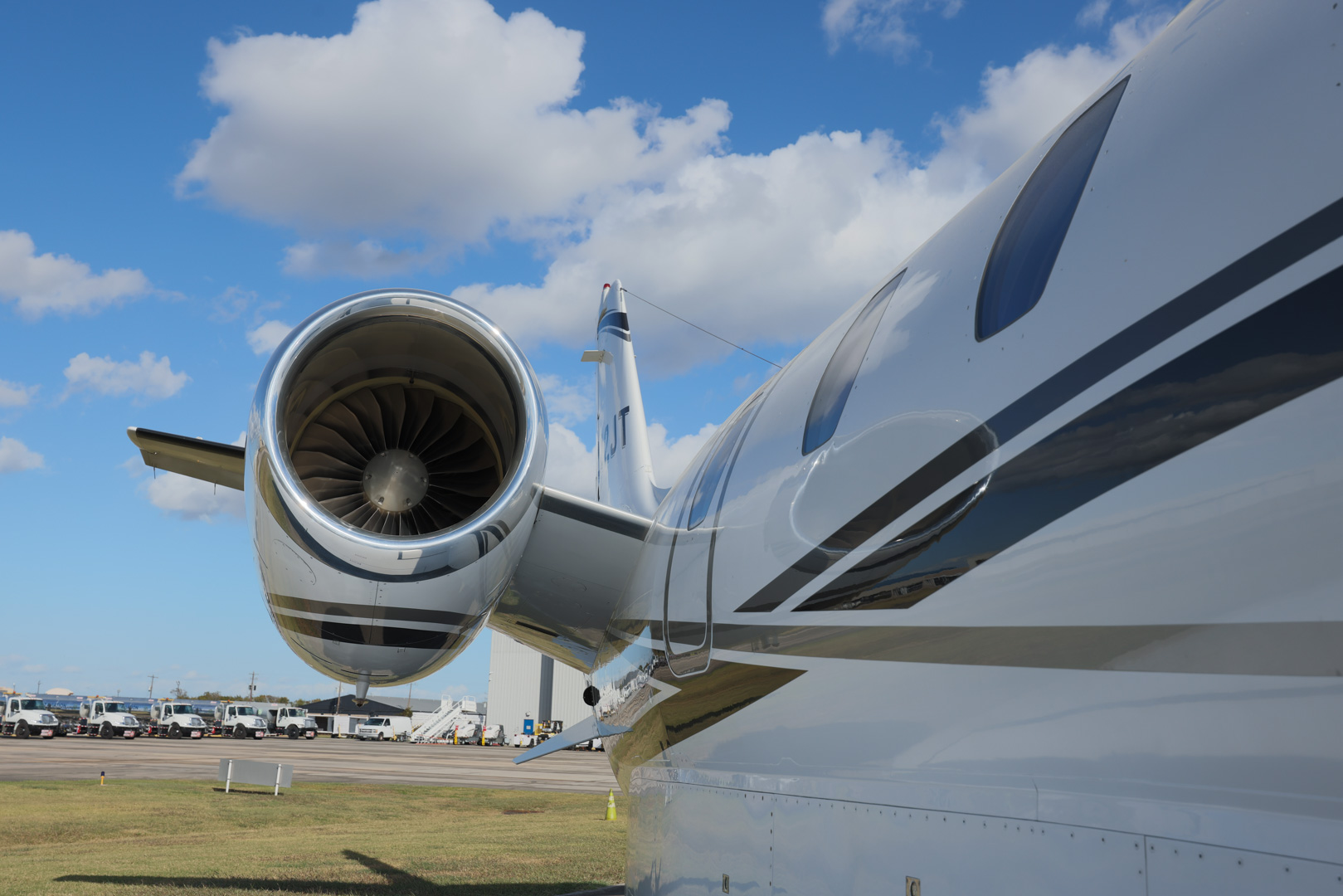

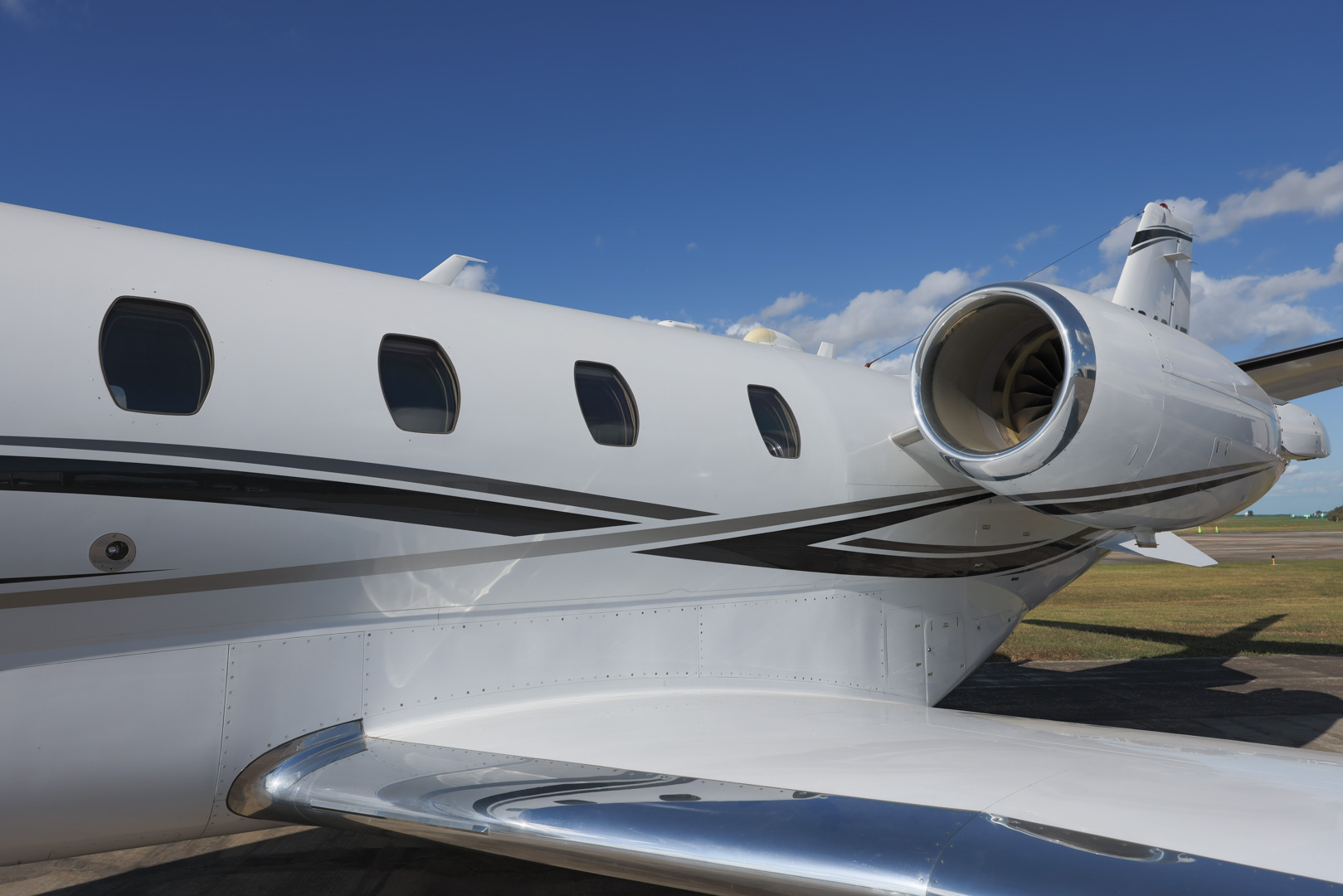

ENGINES:
Pratt & Whitney: PW545C
Serial number(s): DF0267/DF0268
Total time since new: 3,709.8 / 3,709.8
Total cycles since new: 2,824 / 2,824
Program coverage: Power Advantage
Program coverage cost/hour: $230
APU:
Honeywell RE100(XL)
Total time since new: 2,404
Total cycles since new: 3,202
Serial number: P-936
Program: Aux Advantage

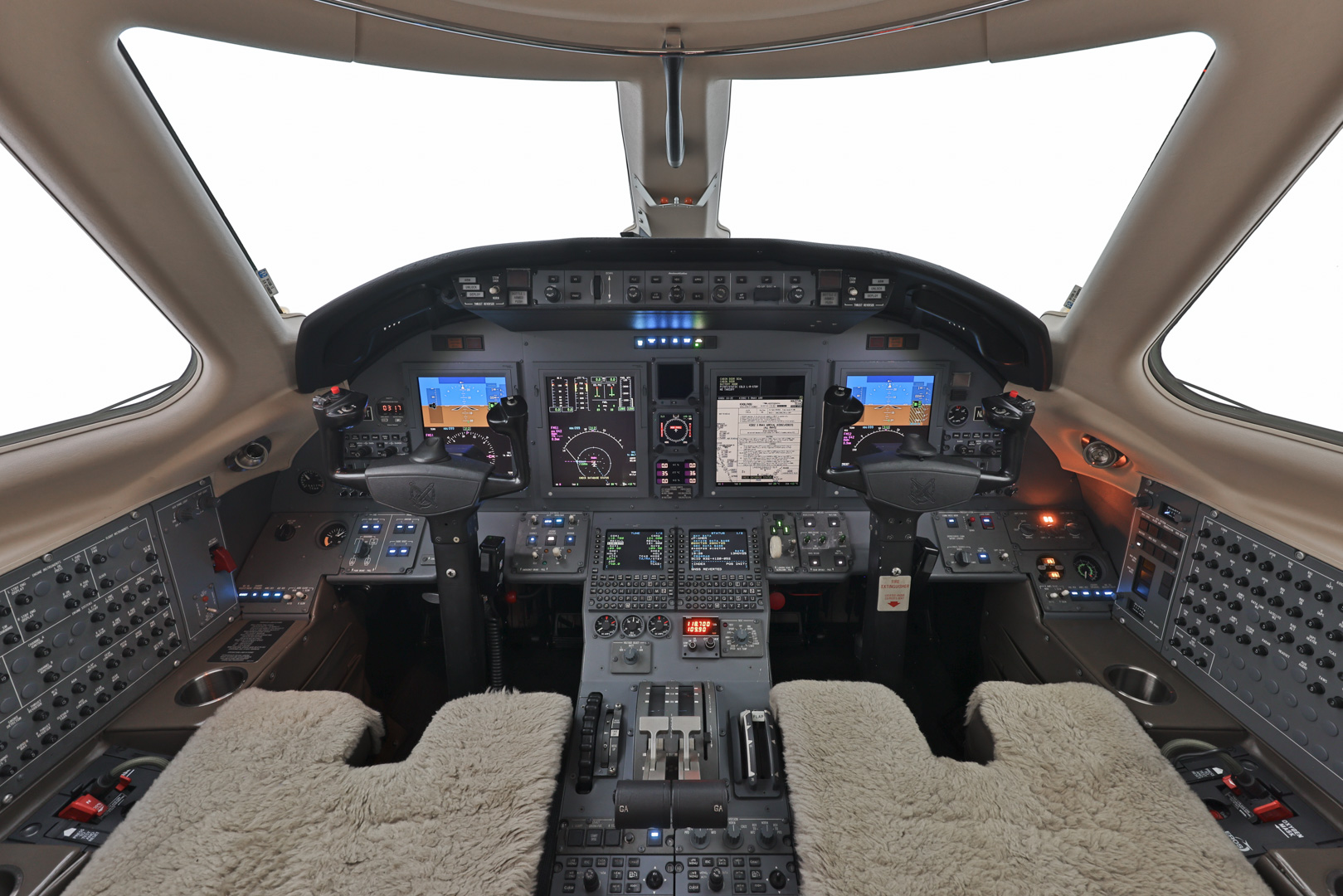

Avionics package: Collins Pro Line 21
ADF: Dual Collins NAV-4000
AHRS: Dual Collins AHC-3000
Communication Radios: Dual Collins VHF-4000w/8.33 spacing
CVR: L3FA2100
FDR: L3 FA-2100 Flight Data Recorder
DME: Dual Collins DME-4000
Flight Rules: IFR
FMS: Dual Collins FMS-3000
GPS: Dual Collins GPS-4000S
Hi Frequency: Collins HF-9031A w/SELCAL
HSI: L3 EHSI-4000
Navigation Radios: Dual Collins NAV-4000 w/FM Immunity
Radar Altimeter: Collins ALT-4000
SATCOM: AirCell Axxess II; AirCell Axxess II Iridium
Stormscope: L3 WX-1000E
TAWS: Honeywell Mark V Class A
TCAS: Collins TCAS-4000 TCAS-II w/change 7.1
ELT: Artex C406-N
Weather Radar: Collins TWR-850 Doppler w/turbulence
Additional Equipment: ADS-B out, WAAS/LPV, XM weather, electronic chip detector

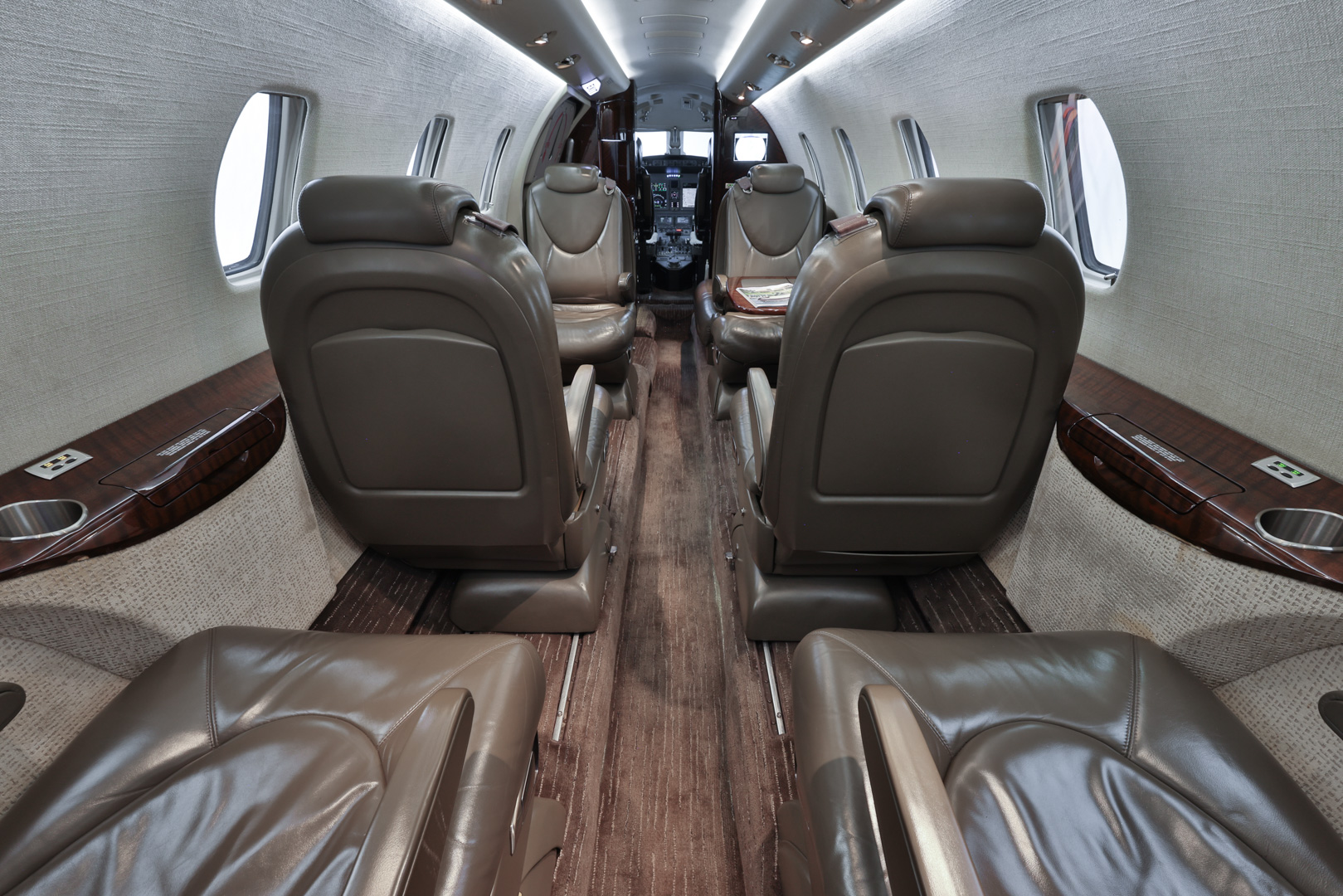

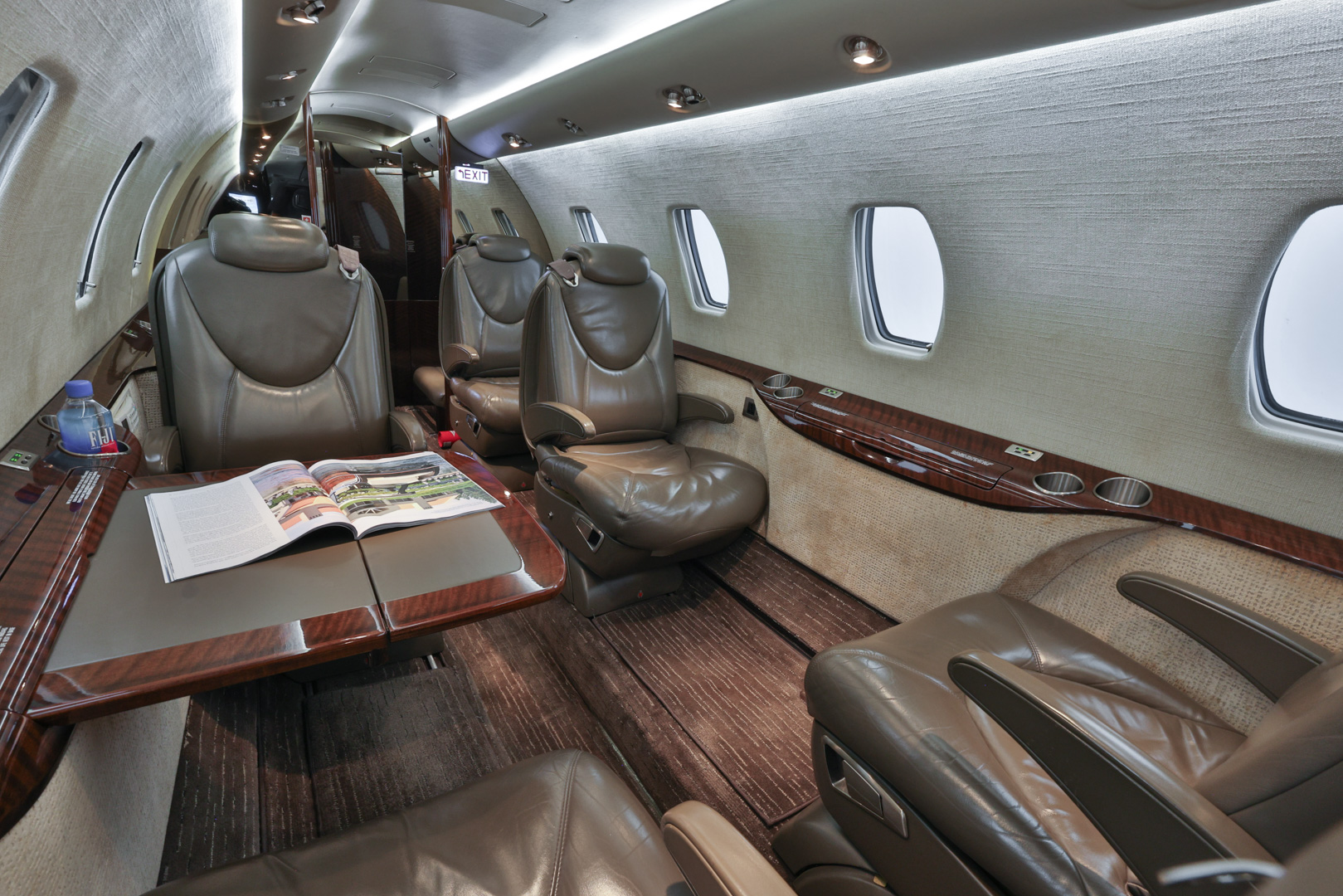

Seating Capacity: Executive/9 seats

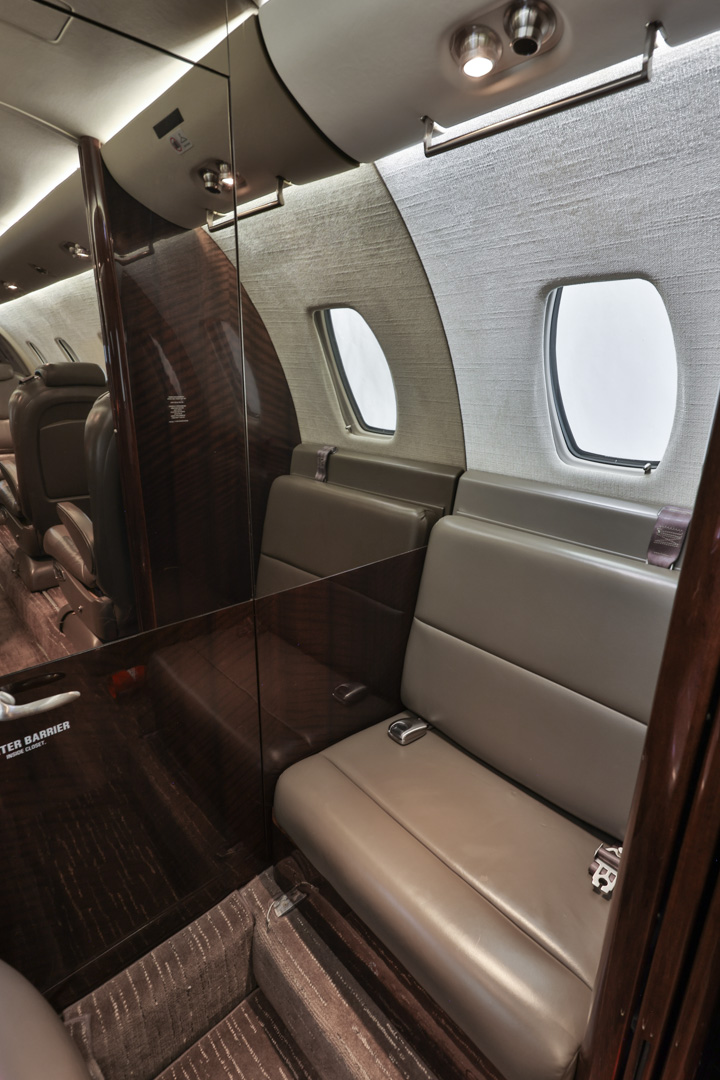

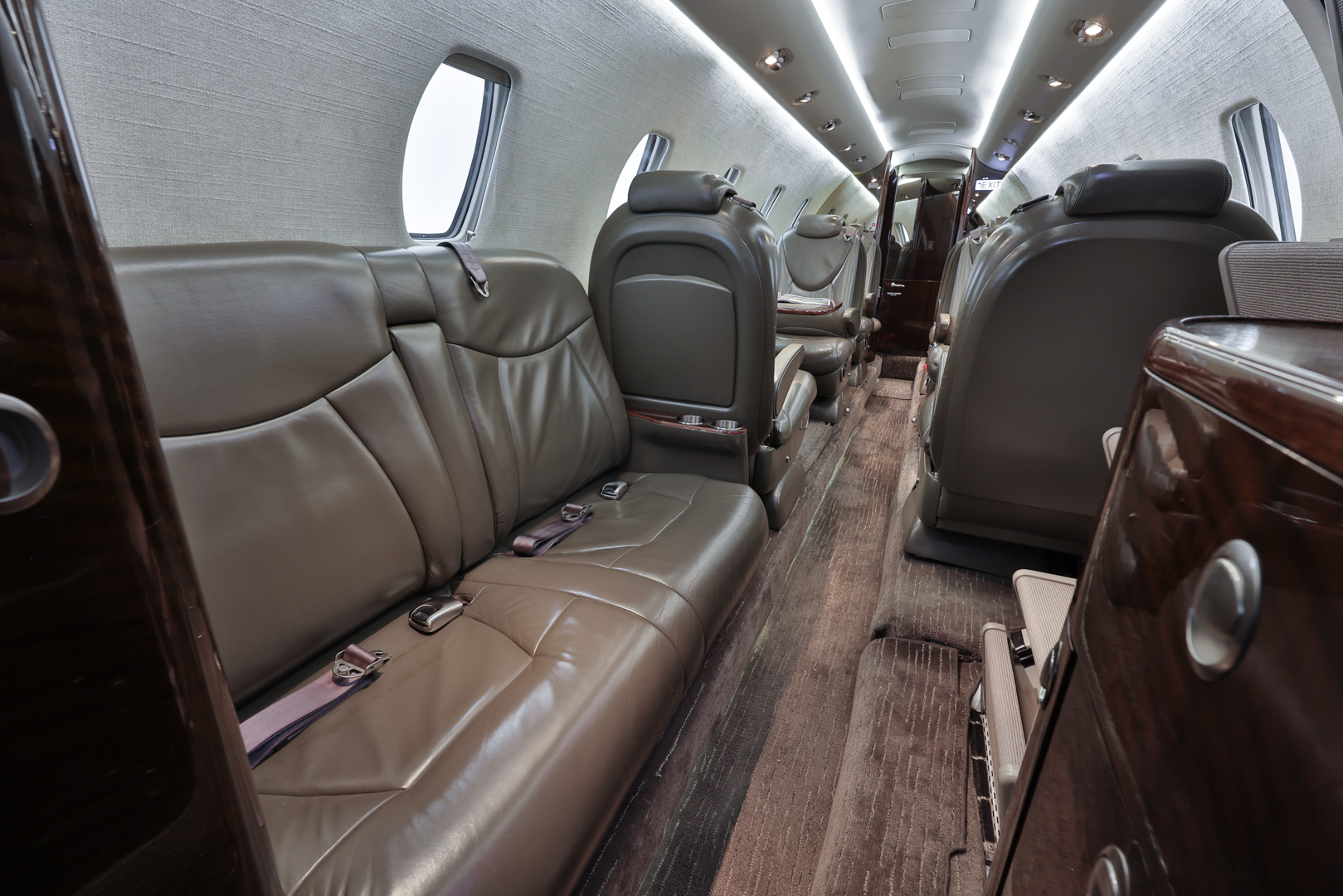

FWD Cabin Configuration: 2 place side-facing divan

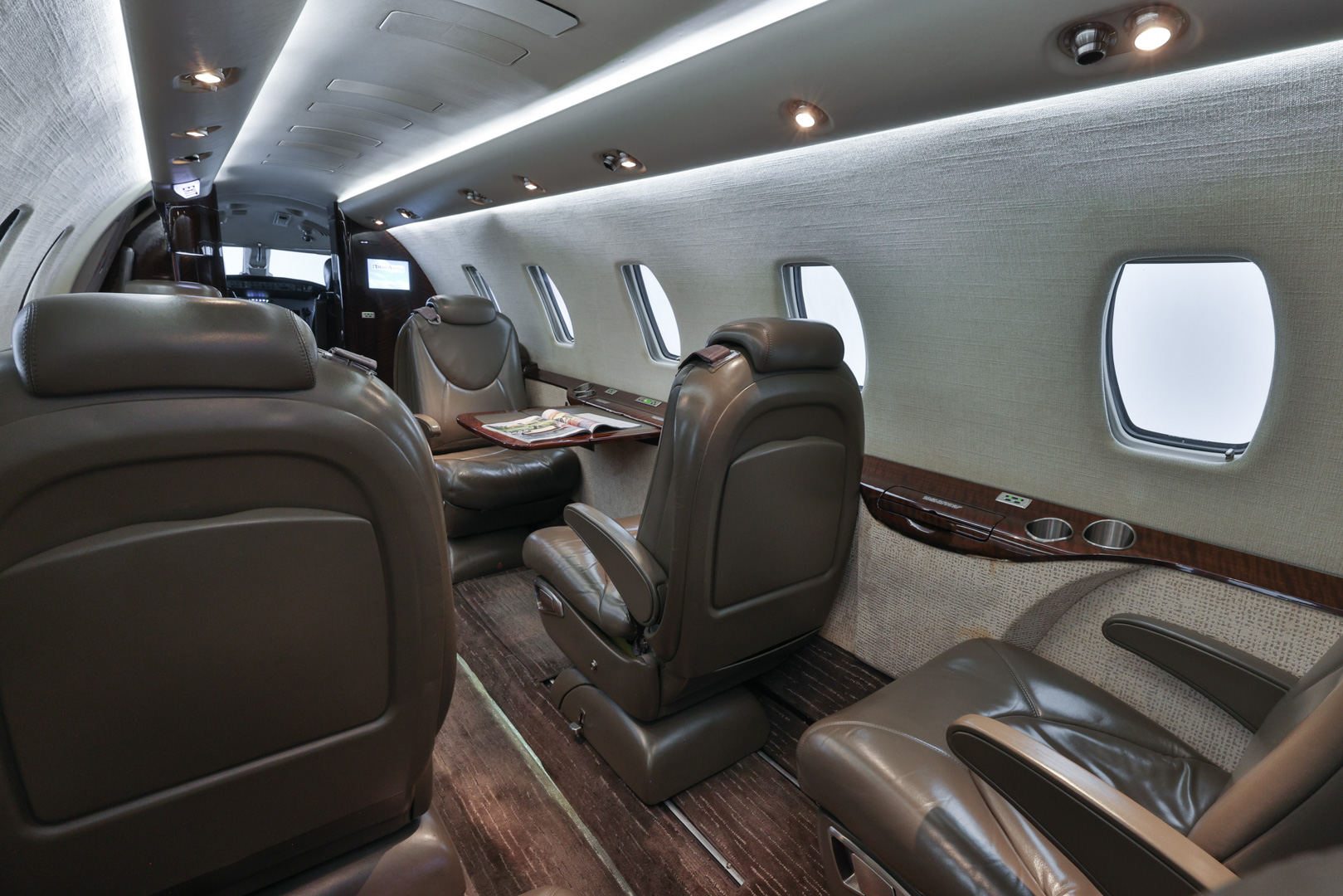

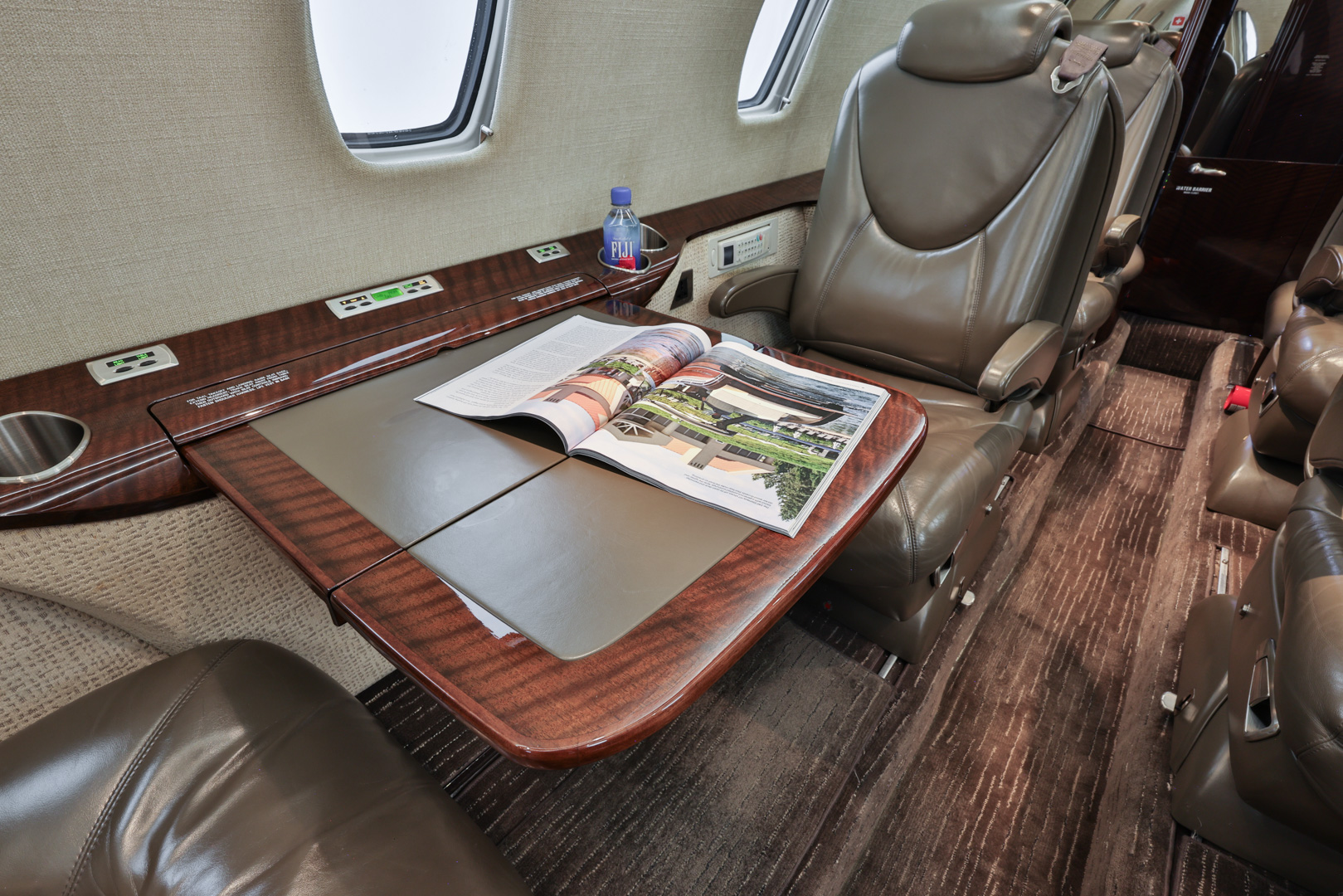

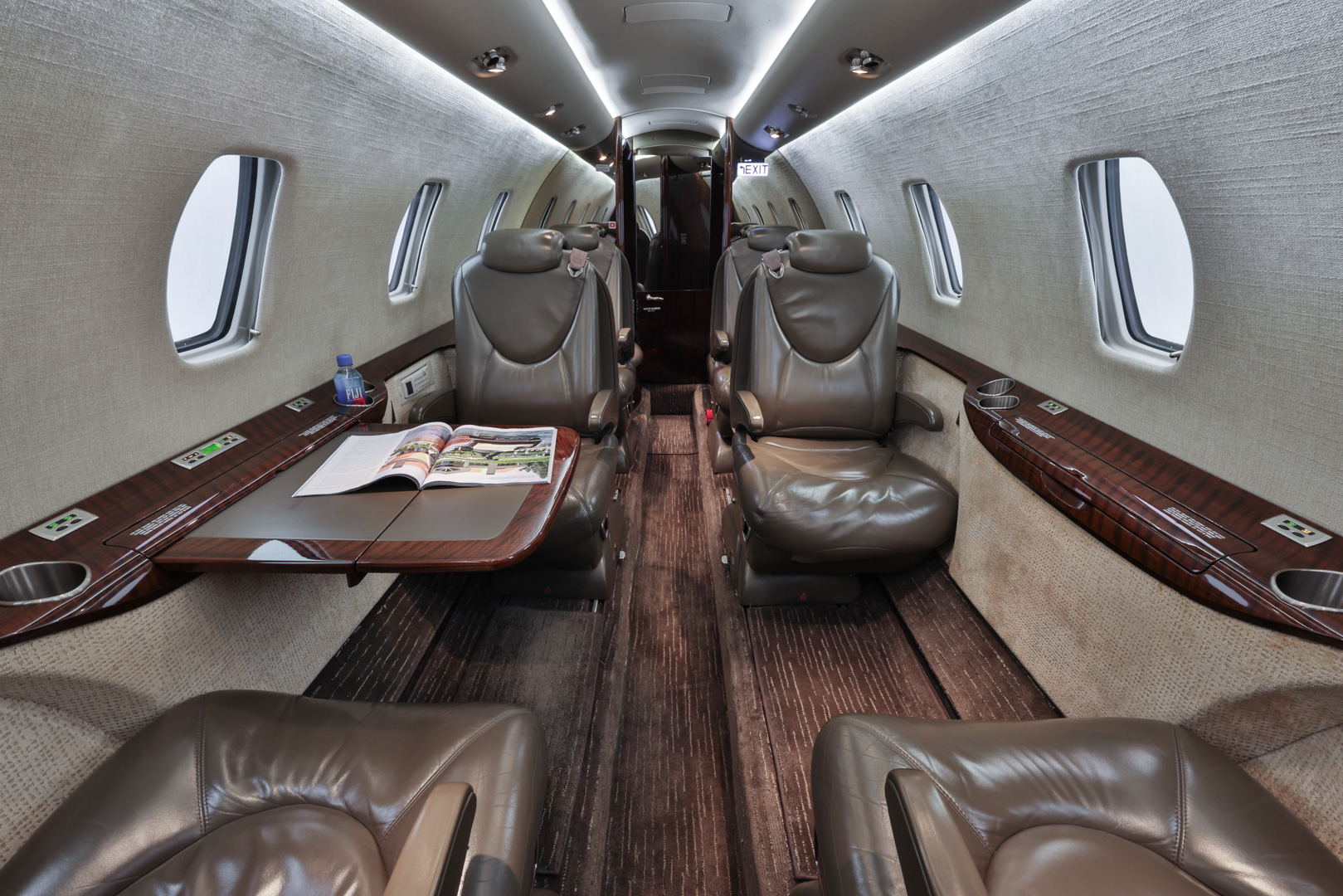

MID Cabin Configuration: 4 place club
AFT Cabin Configuration: Dual forward-facing seats

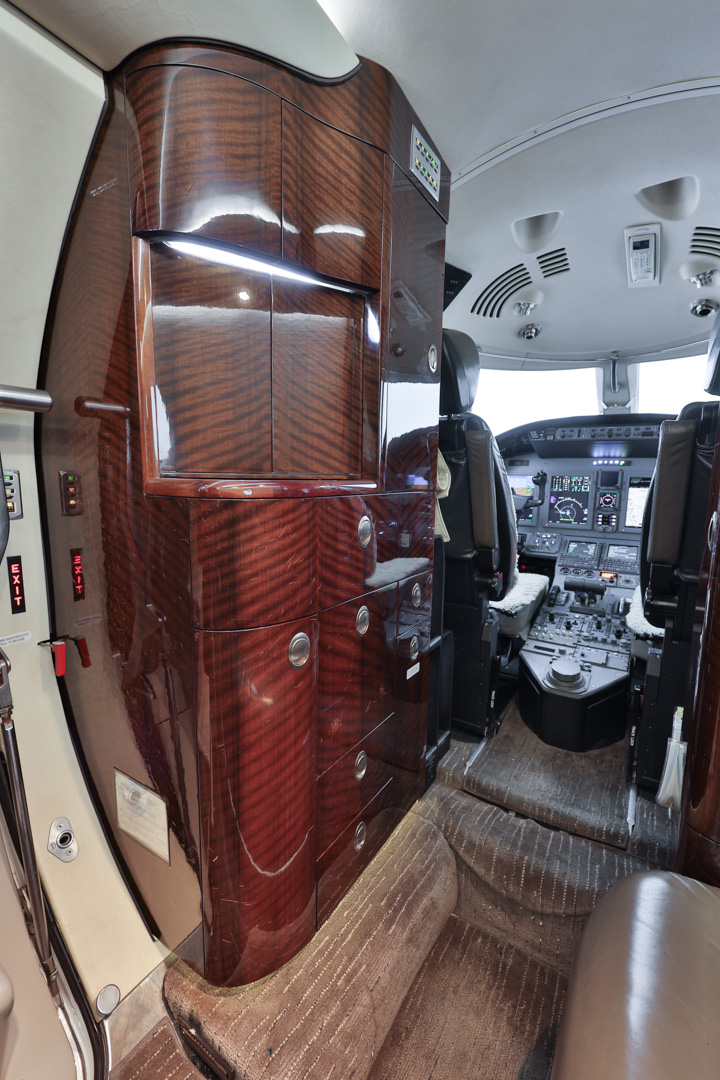

Galley Location: Forward with high temperature oven & microwave
Electrical Outlets: Four (4) 110 volt AC universal outlets

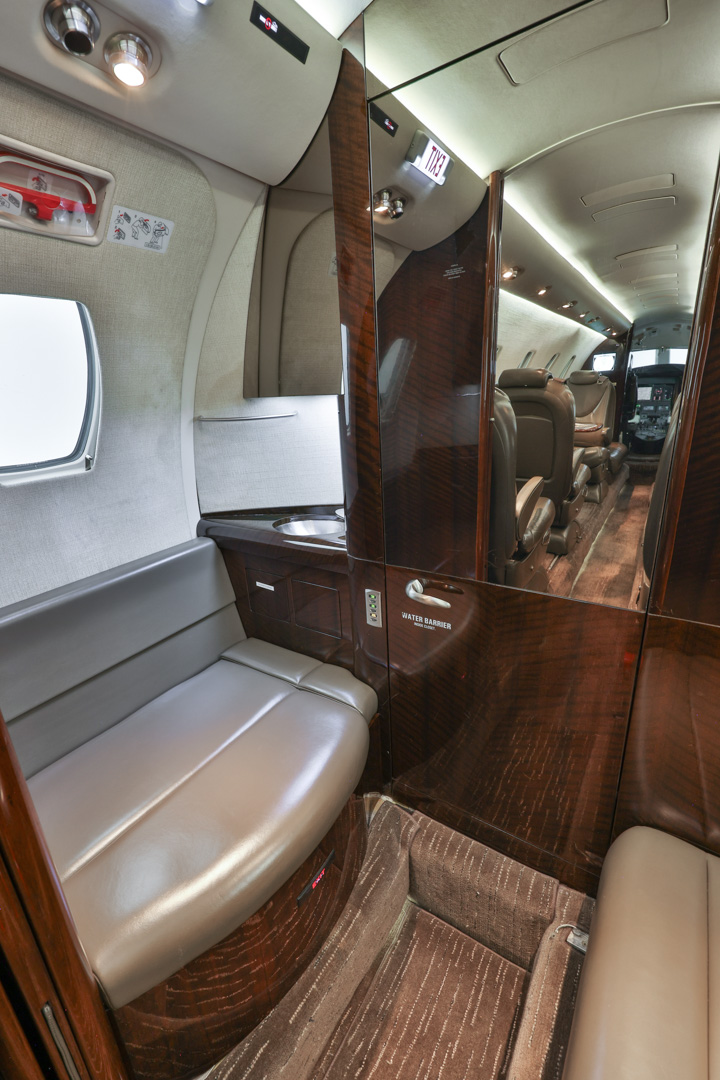

Lavatory Location(s): Belted aft lav
Carpet: Charcoal gray
Woodwork: Australian walnut, high gloss wood veneer finish
Soft Goods: Townsend leather charcoal gray
Crew Seating: Sheepskin-covered
Plating: Satin smoked nickel
ADDITIONAL EQUIPMENT:

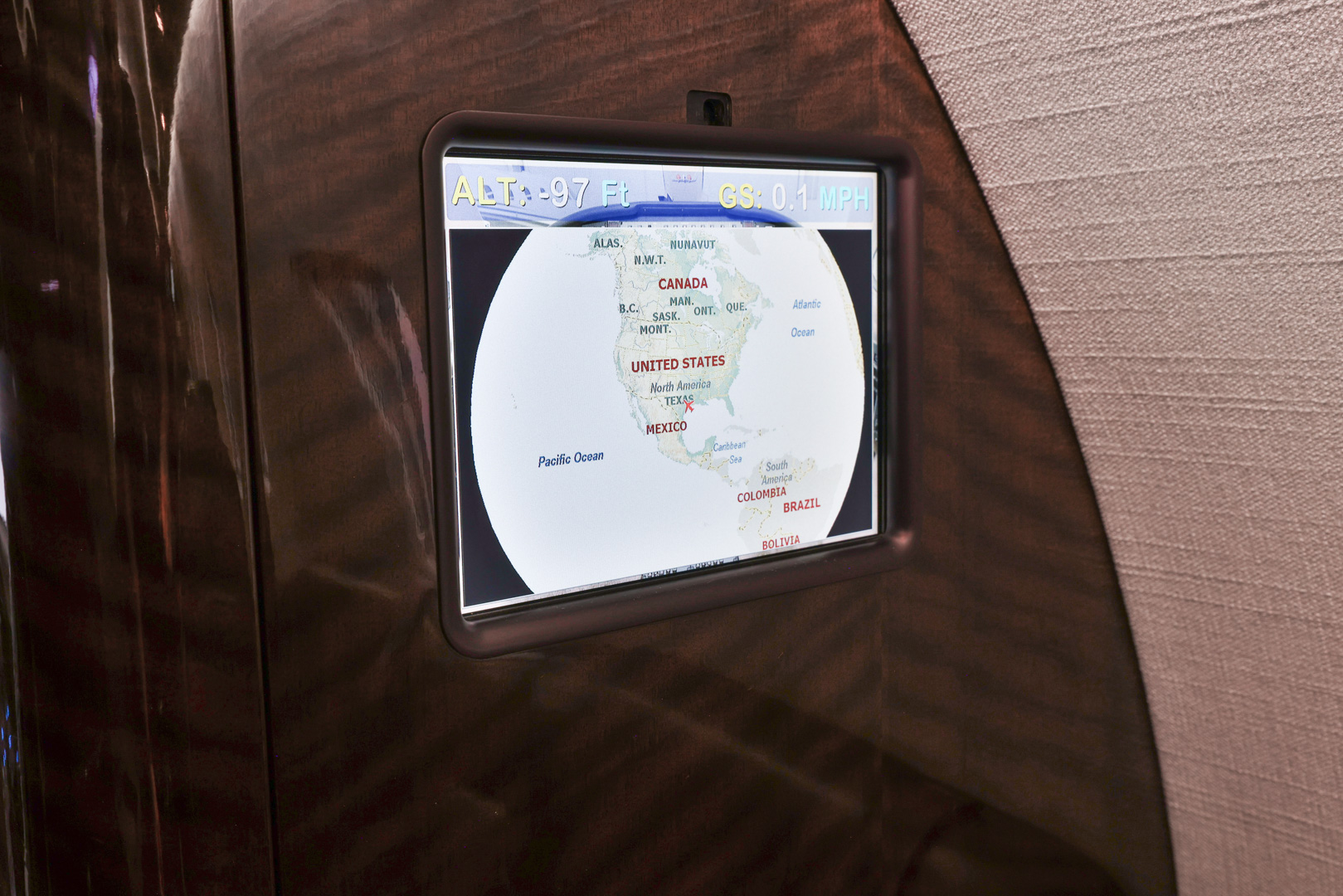

Entertainment: 10.4 LCD video monitor in RH fwd cabinet, Rosen flight view moving map system
Connectivity: Gogo L3 Avance high speed wifi, Aircell Axxess II

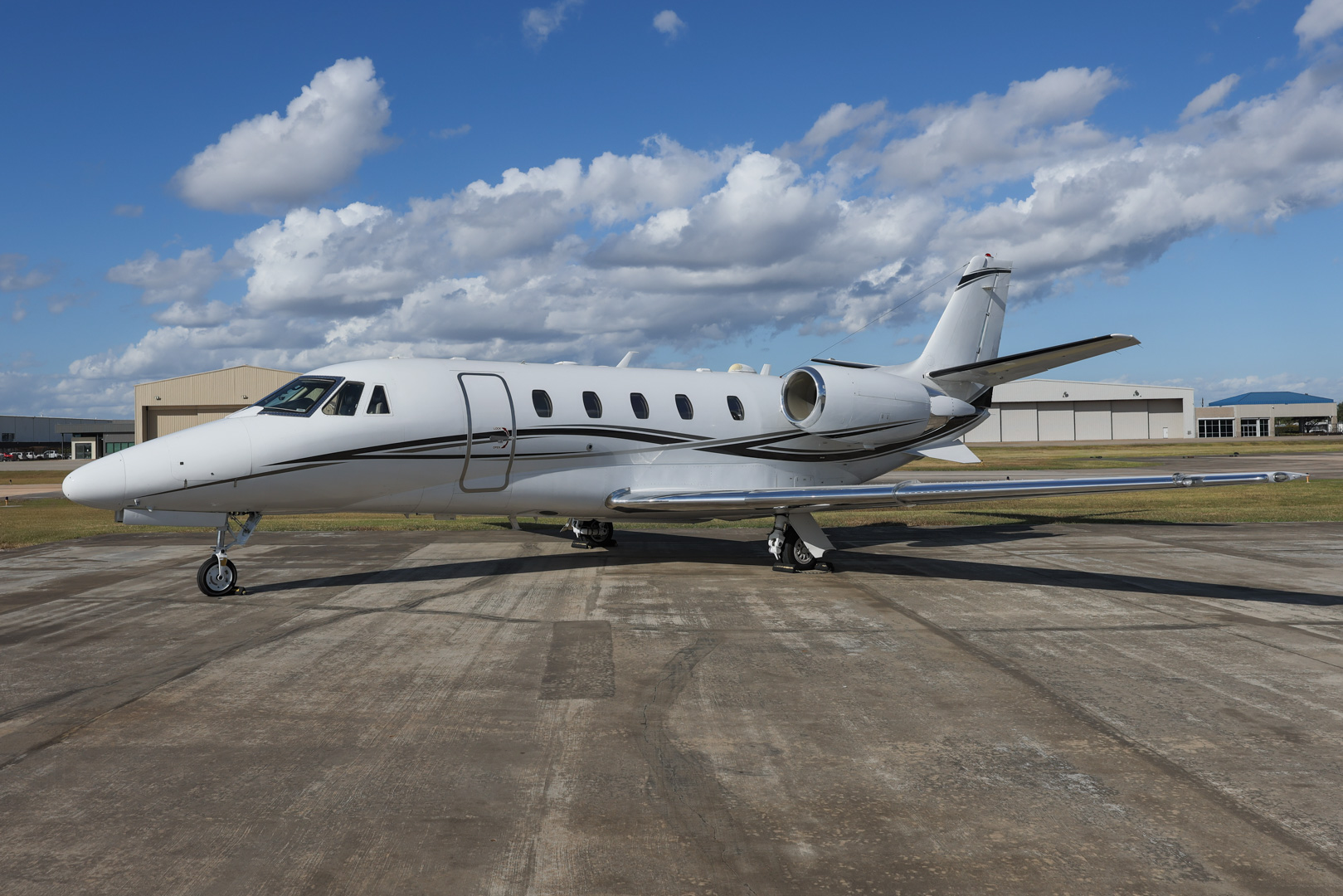

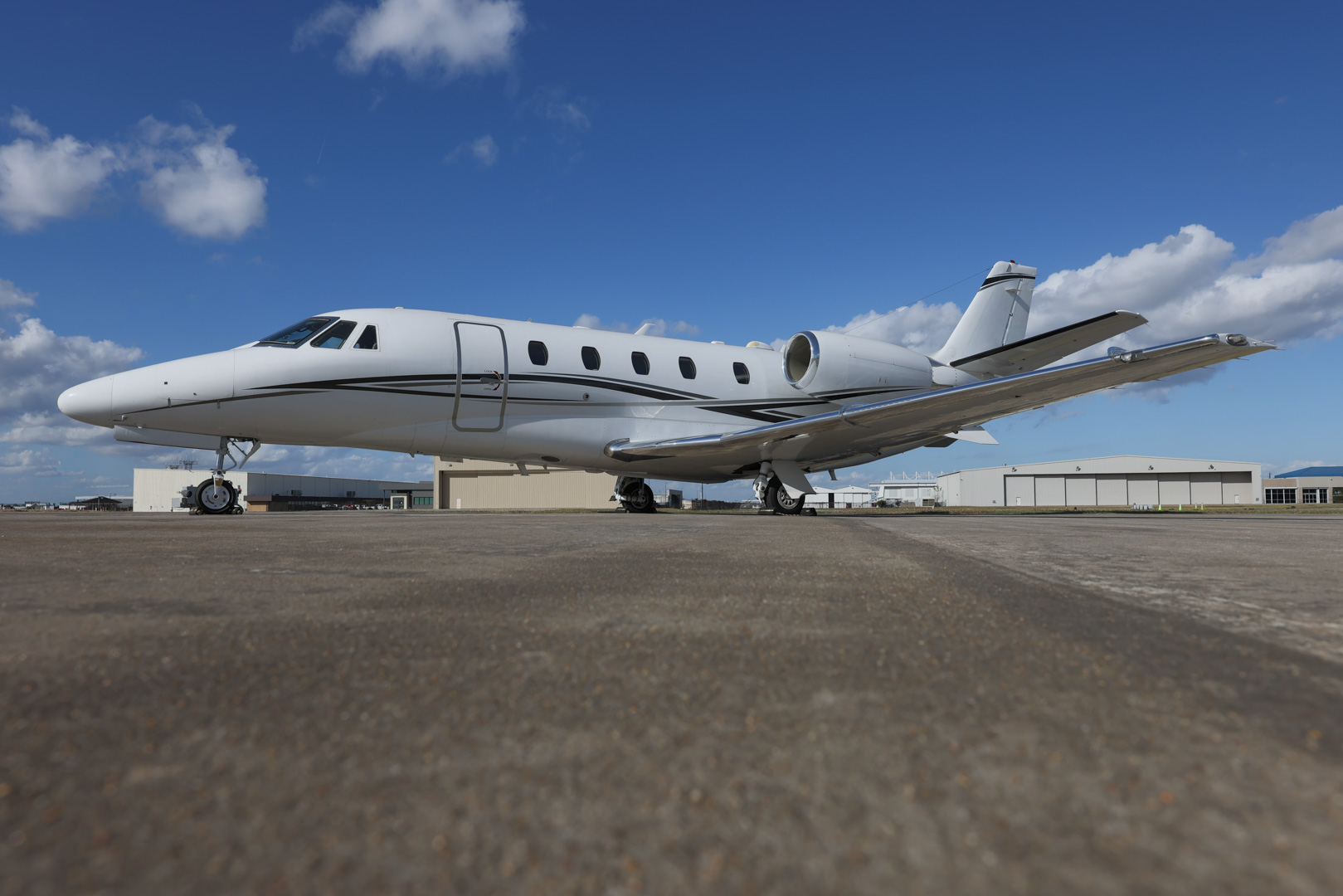

Base: Snow White
Stripe: Silver, Charcoal & Dark Coffee Metallic
Maintenance Tracking: Cescom
Current Regulation: Part 91
Inspection / Completed / Interval / Remaining /Due
Document 3 / 08/16/25 / 24 Months / 16 Months / 04/04/27
Document 6 / 08/16/25 / 48 Months / 40 Months / 03/31/29
Document 12 / 04/04/23 / 60 Months / 29 Months / 04/16/28
Document 13 / 08/16/25 / 72 Months / 64 Months / 03/28/31
Document 16 / 04/26/21 / 96 Months / 40 Months / 03/31/29
